Oracle SPARC T7‑2 Server

Oracle SPARC T7‑2 ServerThe SPARC T7‑2 is a high‑performance, secure 2U rack‑mount two‑processor enterprise server built around the SPARC M7 multi‑core processor, Oracle’s revolutionary chip featuring the proprietary Software‑in‑Silicon architecture. Each SPARC M7 processor runs at 4.13 GHz with up to 32 cores and 256 hardware threads, delivering massive thread‑level throughput ideal for Oracle Database, Java applications, middleware consolidation and private cloud deployments.

One of the most notable innovations is Silicon Secured Memory, a hardware‑enforced security mechanism that detects and prevents buffer‑overflow attacks and invalid memory access at the silicon level, protecting application and database data from memory‑corruption exploits without significant performance penalty. Integrated on‑core crypto accelerators speed up SSL, TLS and database encryption operations.

Hardware specifications:

• Form factor: 2‑U rack‑mount chassis

• Processors: 2 × SPARC M7 (4.13 GHz, up to 32‑cores each)

• Memory: Large‑capacity DDR4 DIMM configuration

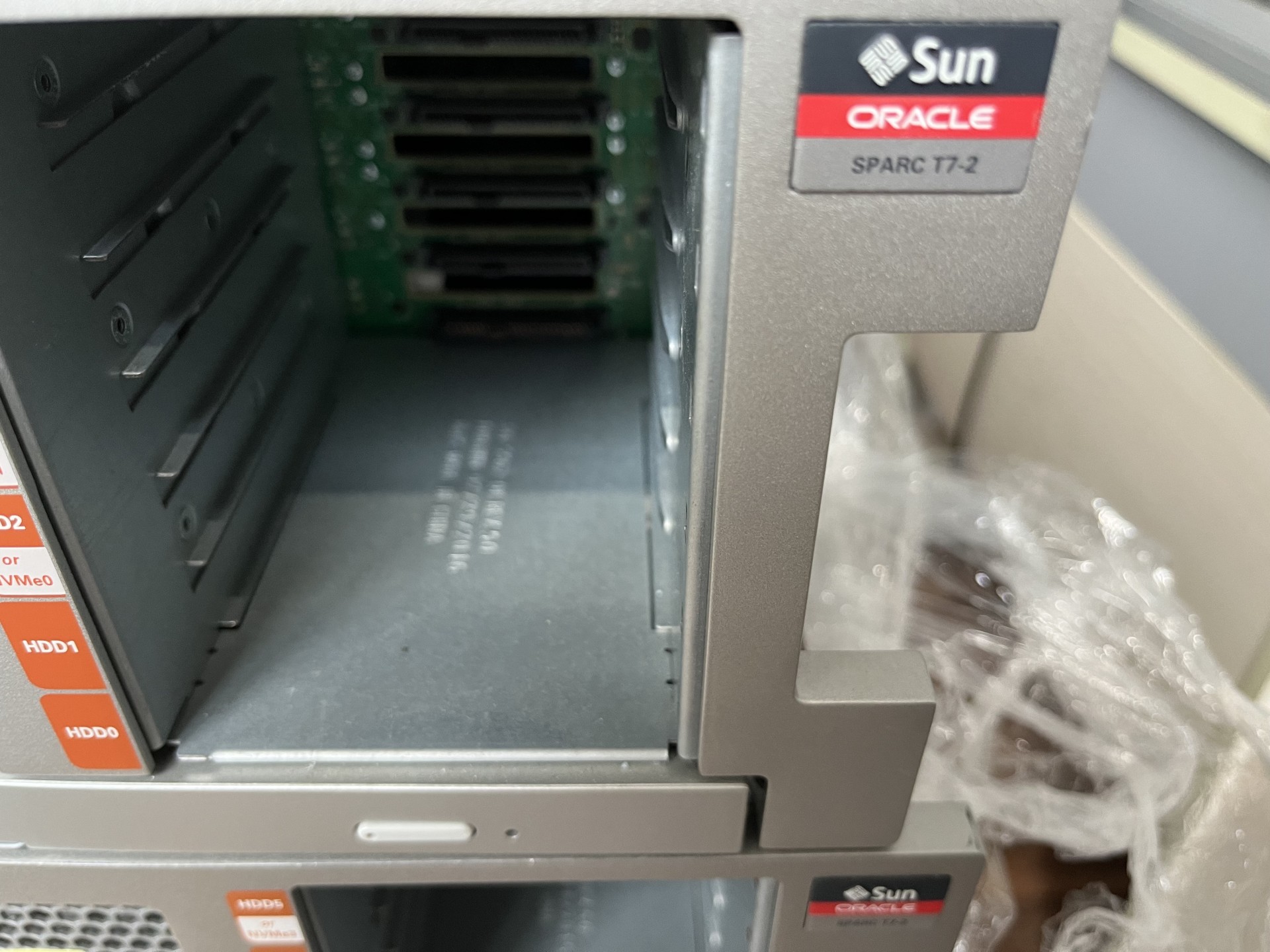

• Storage: Six front‑accessible 2.5‑inch SFF drive bays supporting SAS‑3 HDD / SSD and NVMe SSD; optional DVD‑RW

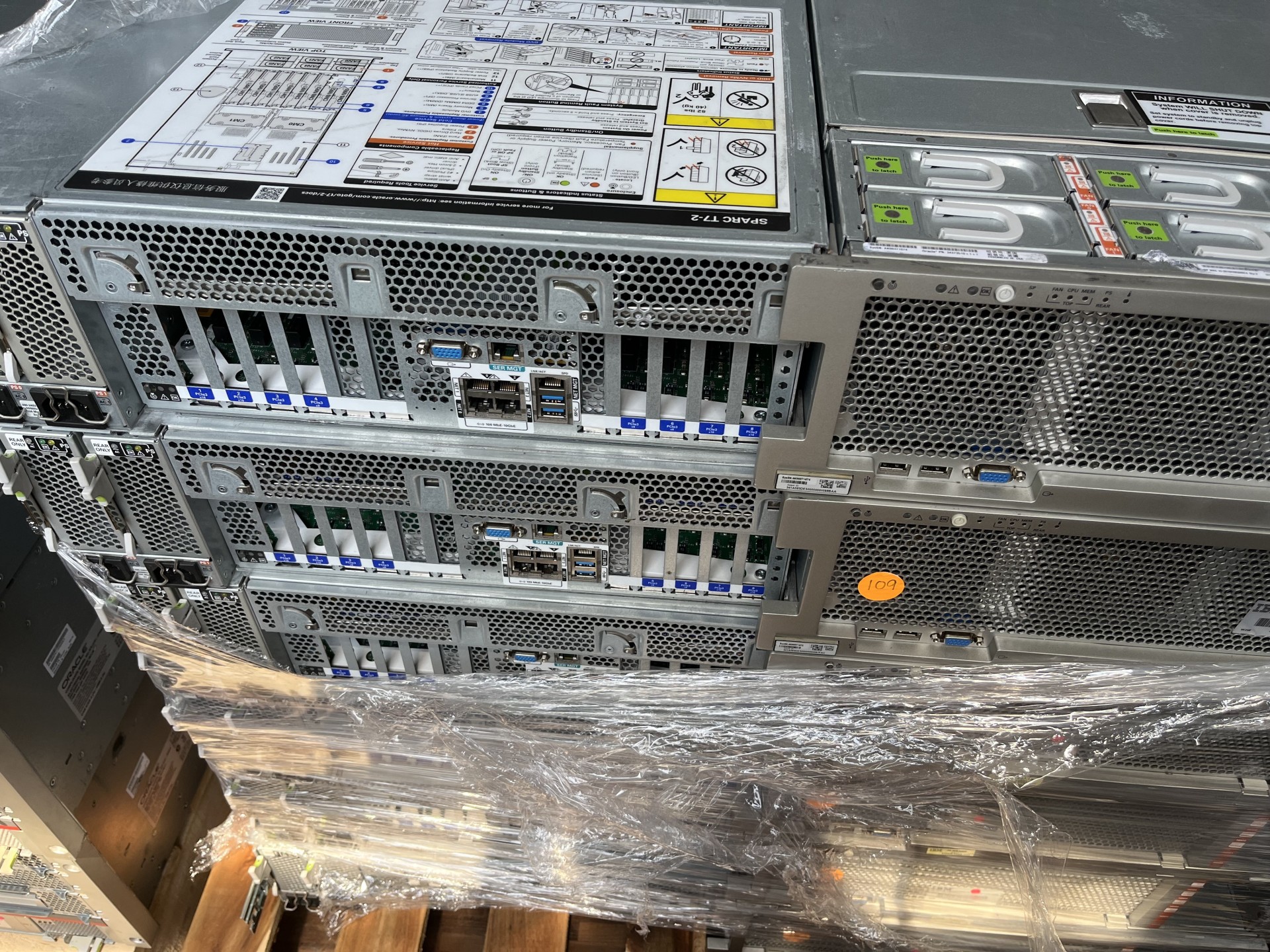

• Expansion: Eight PCI‑E Gen3 low‑profile slots (four x8, four x16)

• Network: Four onboard 10GBase‑T RJ45 10‑Gigabit Ethernet ports

• Management: Oracle ILOM for full remote lights‑out administration

• Redundancy: Hot‑swap redundant AC power supplies and hot‑pluggable fan modules

• Supported OS: Oracle Solaris 11 (and Solaris 10)Oracle

The SPARC T7‑2 is engineered for high availability, virtualization with Oracle VM Server for SPARC, and consolidation of multi‑workload enterprise environments. It remains a reliable platform for legacy and mission‑critical Solaris‑based business systems.

Key specification bullet points

• Chassis: 2U Rack‑mount Server

• CPU: Dual SPARC M7 @4.13GHz

• Technology: Software‑in‑Silicon, Silicon Secured Memory, On‑chip crypto acceleration

• I/O: 8 × PCI‑E Gen3 low‑profile slots; 4 × 10GBase‑T Ethernet

• Internal Storage: 6 × 2.5” SFF drive bays (SAS‑3 / NVMe capable)

• System Management: Oracle ILOM

• OS Support: Oracle Solaris 10 /11, Oracle VM for SPARC

• Redundant hot‑swap power & cooling for enterprise reliability
