Oracle SPARC T7‑1 Server

Oracle SPARC T7‑1 ServerThe SPARC T7‑1 is a 2U rack‑mount, single‑socket enterprise server powered by one SPARC M7 processor running at 4.13 GHz with up to 32 cores and 256 hardware threads. Unlike the T7‑2, the T7‑1 does not support a second CPU upgrade; it is fixed single‑socket configuration.

It inherits the revolutionary Software‑in‑Silicon features of the M7 chipset. Silicon Secured Memory provides hardware‑level protection against memory corruption and buffer‑overflow exploits. Integrated on‑chip cryptographic accelerators offload encryption tasks for TLS, SSL and Oracle database transparent data encryption. In‑memory data analytics accelerators (DAX engines) speed up database query and decompression operations directly on the processor dieOracle.

Hardware specifications:

• Form factor: 2‑U rack‑mount chassis

• Processor: 1 × SPARC M7 @4.13 GHz (32‑core, 256 threads, non‑expandable socket)

• Memory: Up to 16 DDR4 DIMM slots, maximum 1TB system memory

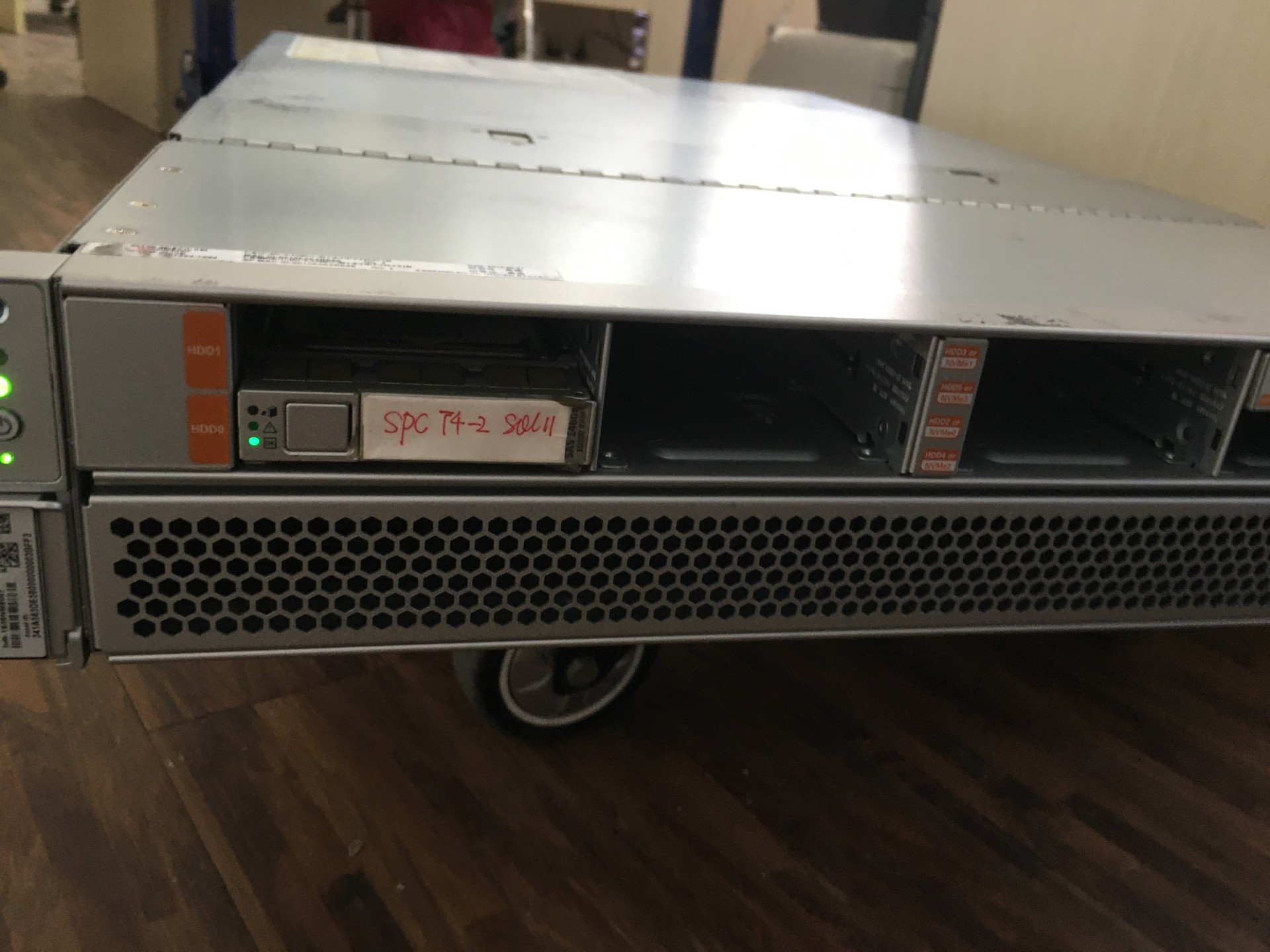

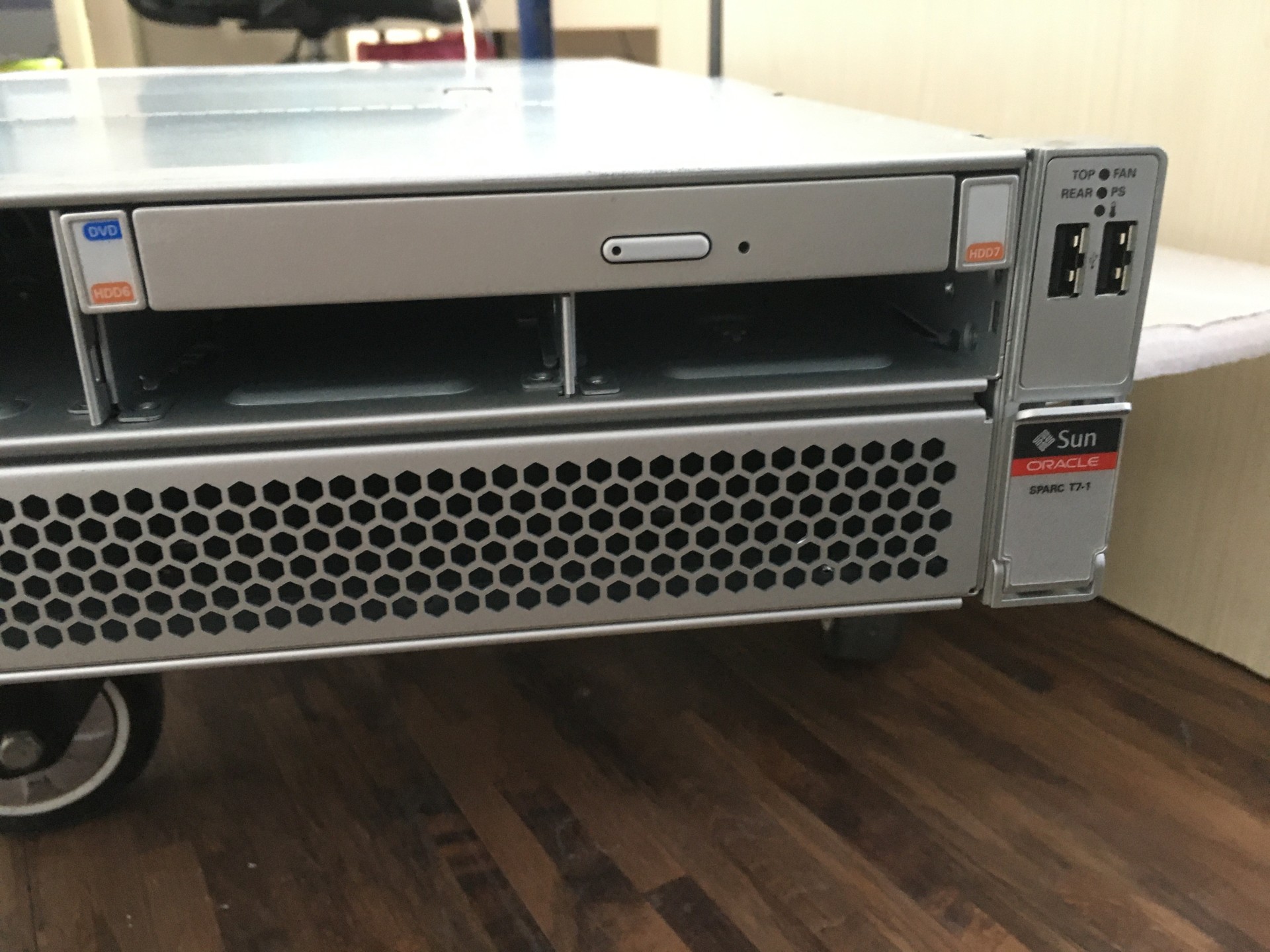

• Storage: Eight front‑loading 2.5‑inch SFF drive bays for SAS‑3 HDD / SSD and NVMe SSD; optional SATA DVD‑RW

• Expansion: Six low‑profile PCI‑E Gen3 slots

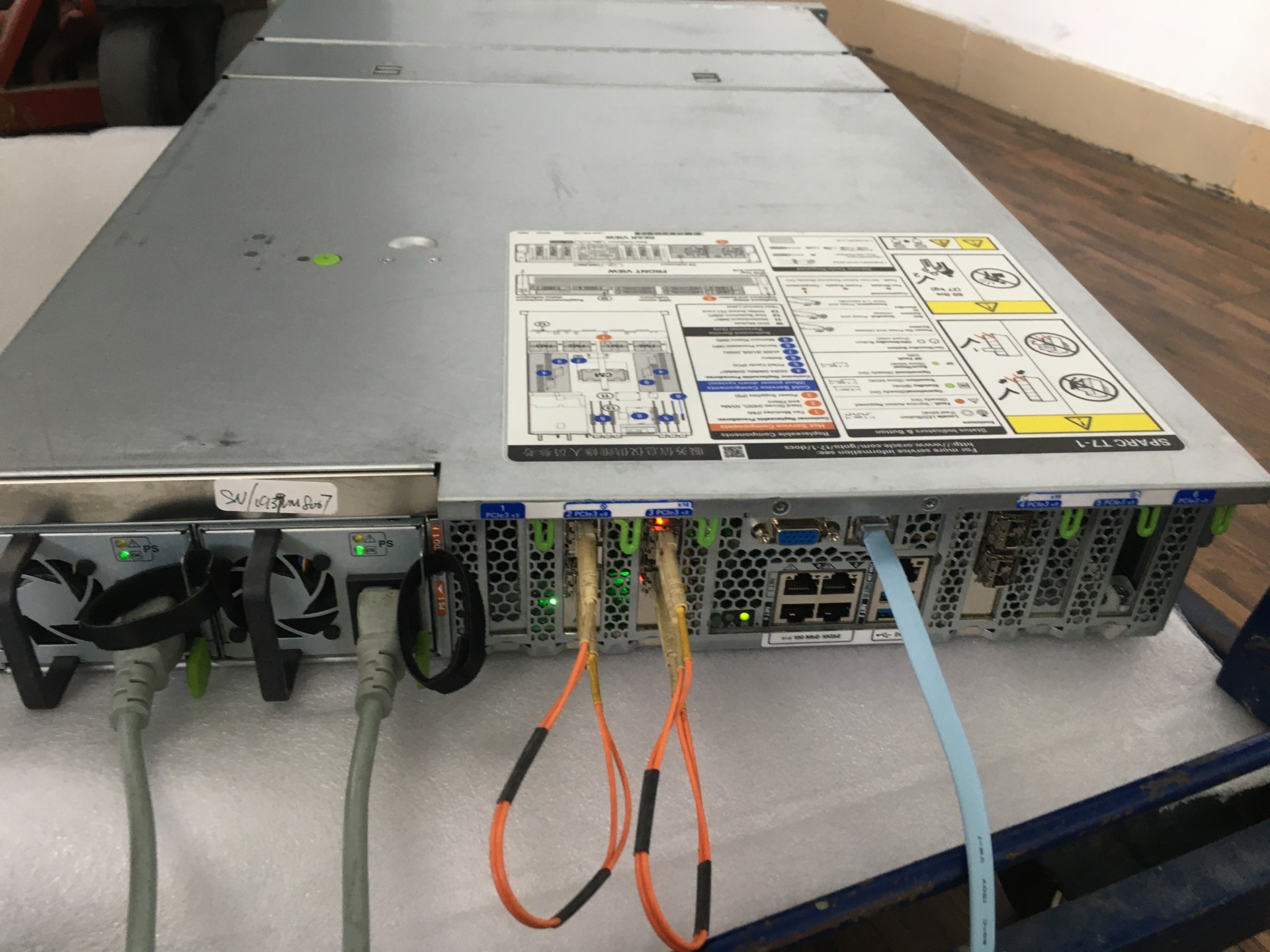

• Network: Four onboard 10GBase‑T RJ45 10‑Gigabit Ethernet ports

• Management: Oracle ILOM remote lights‑out management

• Redundancy: Hot‑swap redundant AC power supplies and hot‑pluggable fan modules

• Supported OS: Oracle Solaris 10 / 11, Oracle VM Server for SPARC (Logical Domains virtualization)Oracle

Target use‑cases include mid‑tier Oracle database instances, Java application servers, consolidation of smaller Solaris workloads and scale‑out private cloud deployments. It is a cost‑optimized member within the T7 family, sitting below the dual‑socket SPARC T7‑2 server.

Key specification bullet points

• Chassis: 2U Rack‑mount Server

• CPU: Single SPARC M7 @4.13 GHz (32‑Cores /256‑Threads, non‑expandable)

• Technology: Software‑in‑Silicon, Silicon Secured Memory, On‑chip crypto & DAX analytics acceleration

• I/O: 6 × PCI‑E Gen3 low‑profile slots; 4 × onboard 10GBase‑T Ethernet

• Internal Storage: 8 × 2.5” SFF drive bays (SAS‑3 / NVMe SSD capable)

• System Management: Oracle ILOM

• OS Support: Oracle Solaris 10 /11, Oracle VM for SPARC

• Redundant hot‑swap PSU & cooling for enterprise reliability
