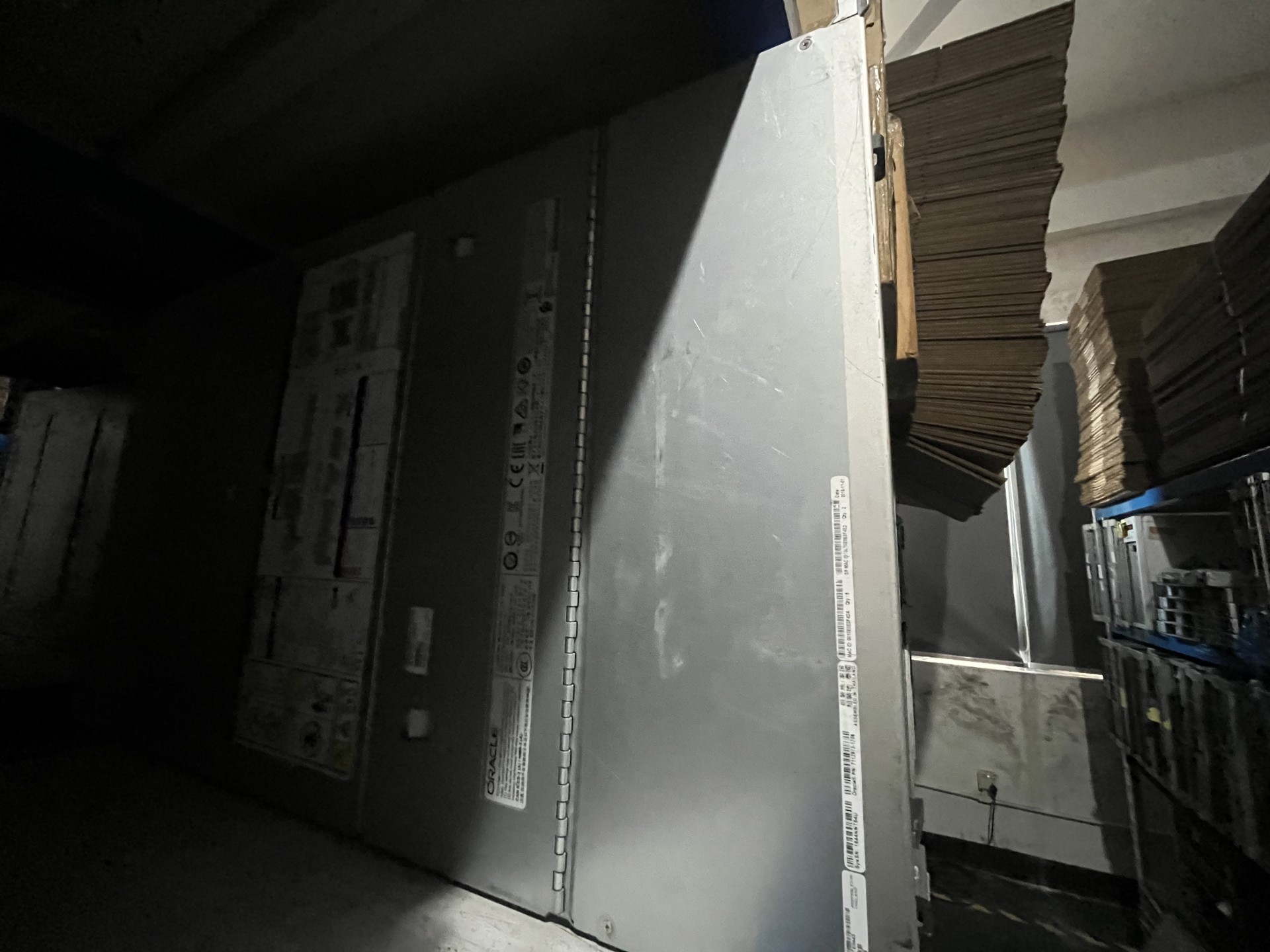

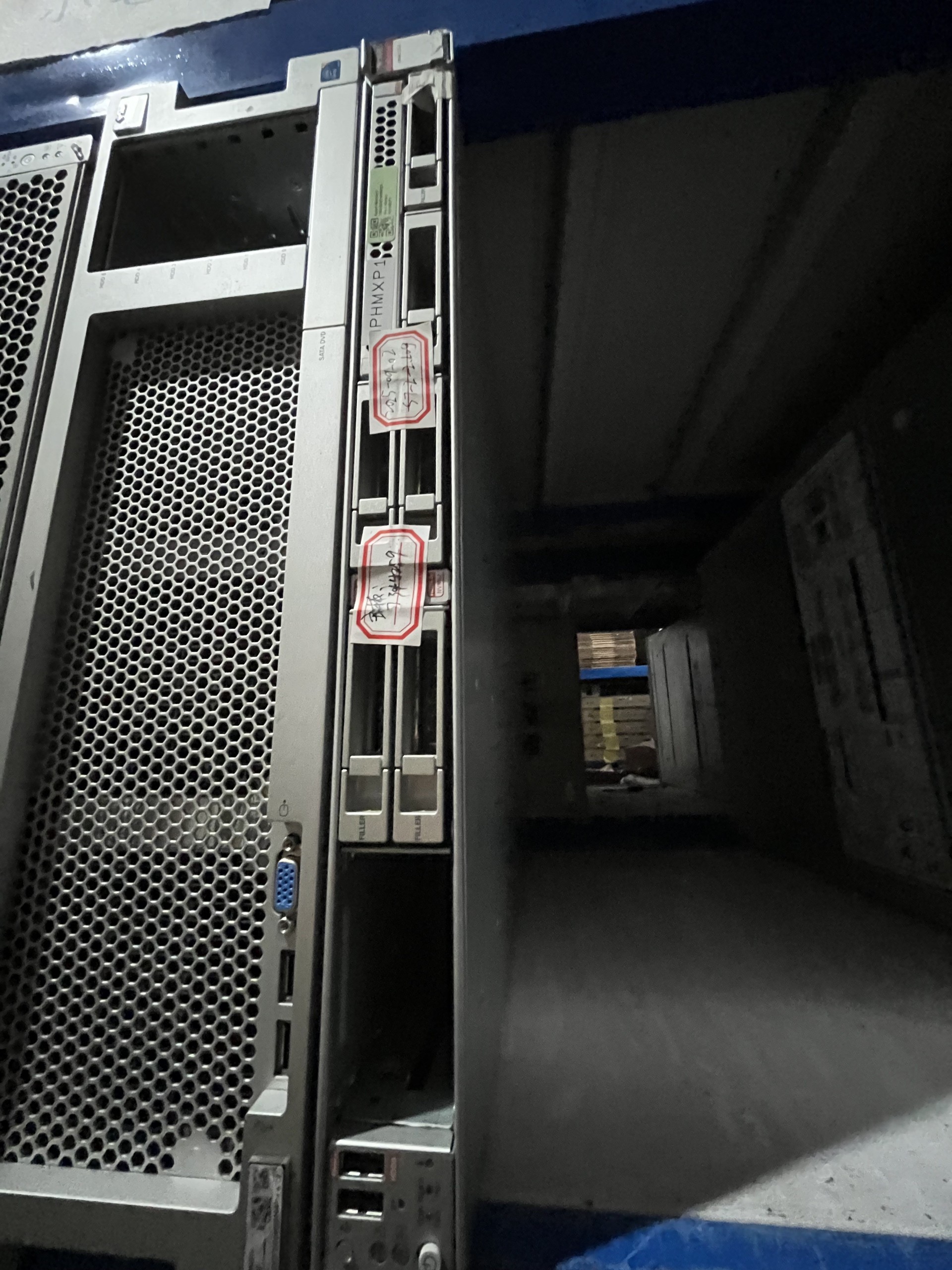

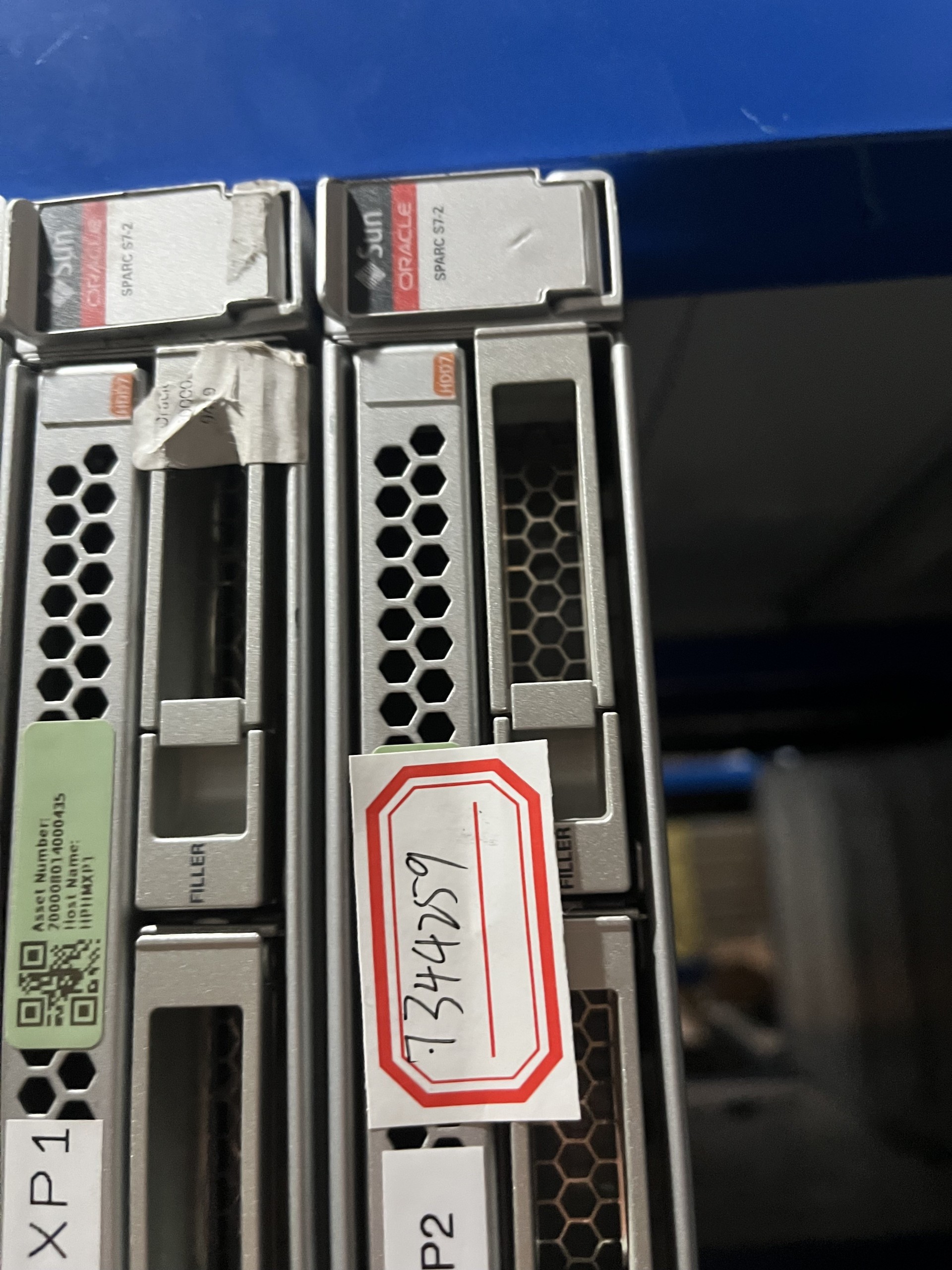

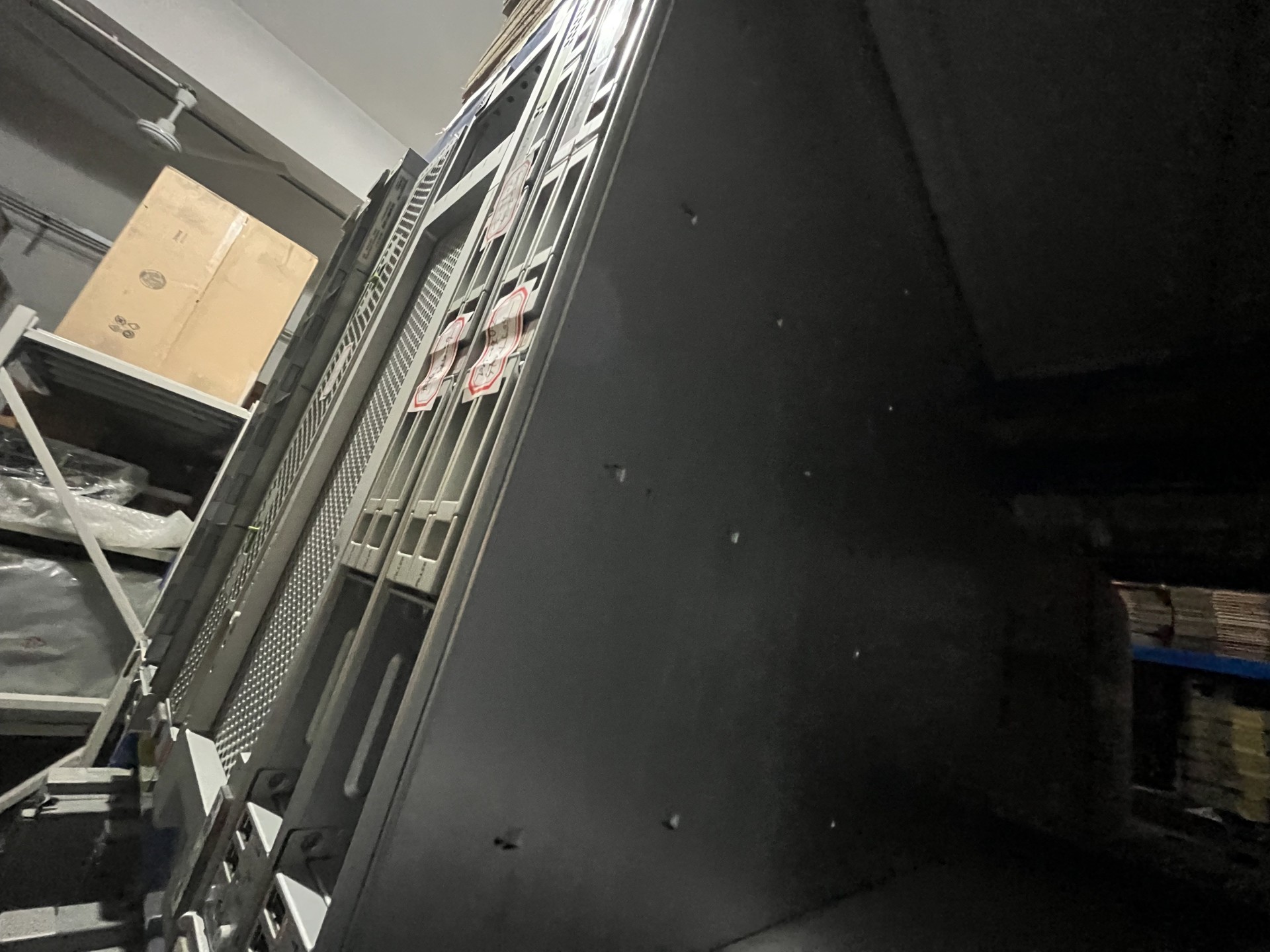

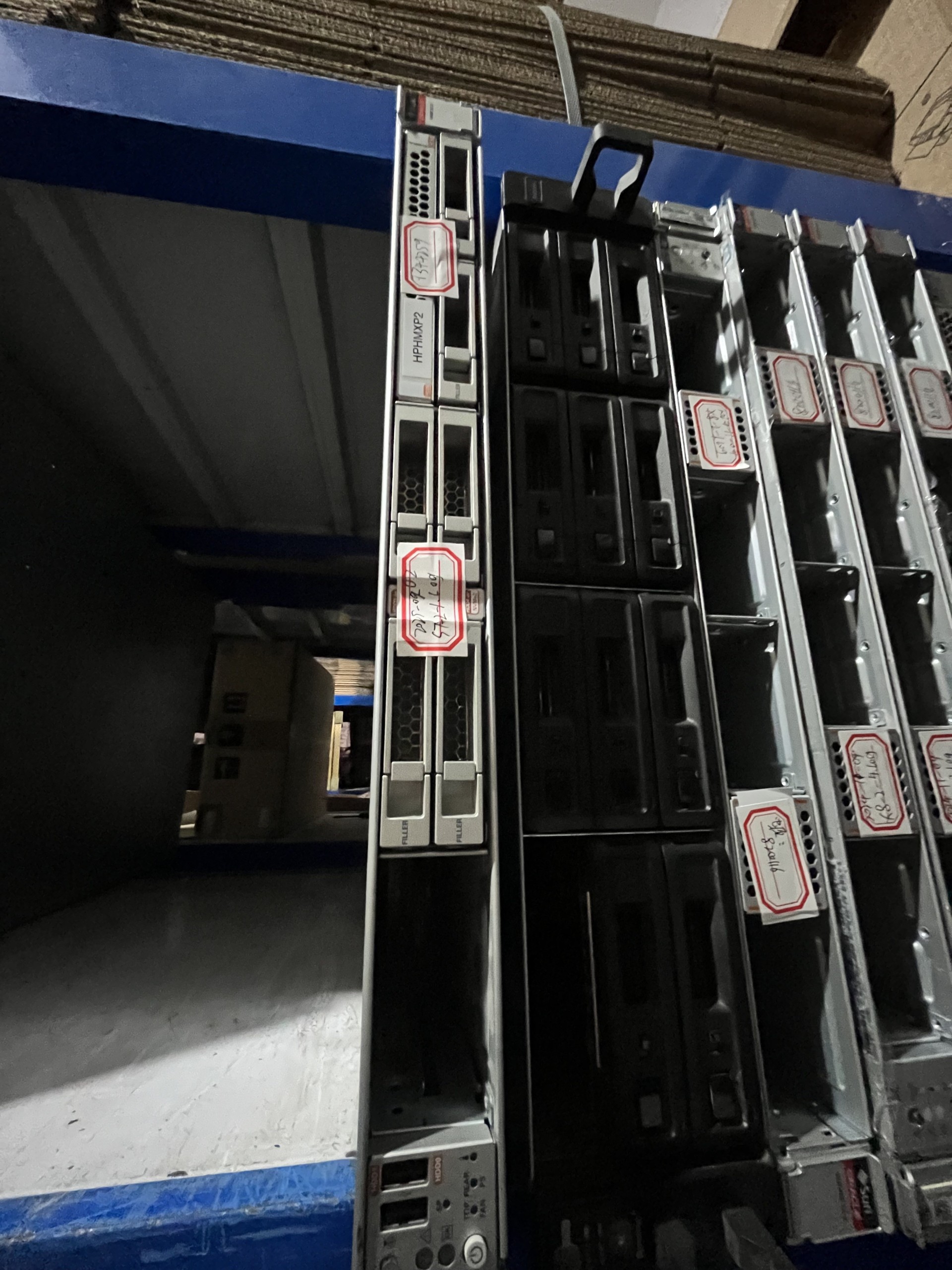

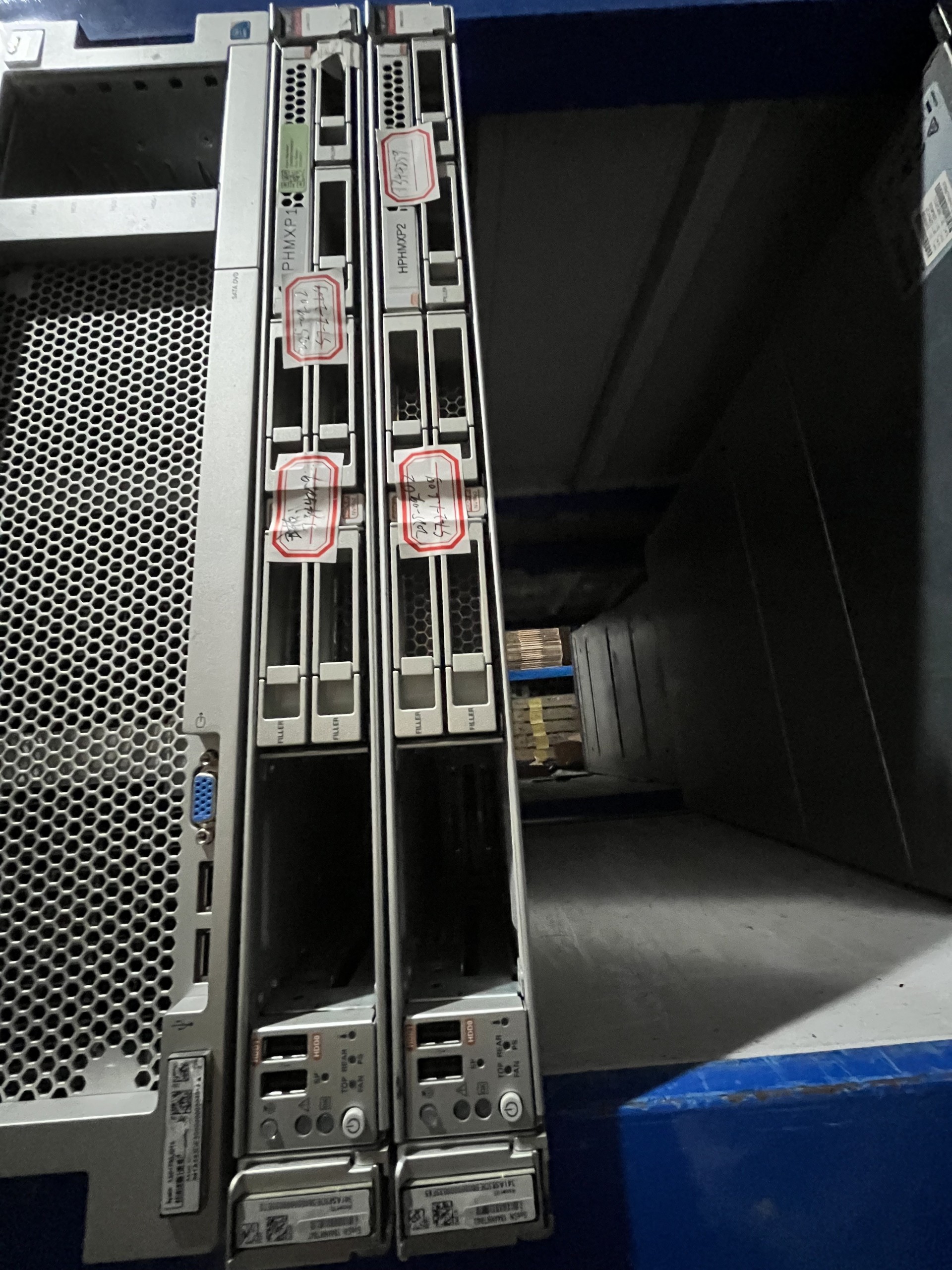

Oracle SPARC S7‑2 Server

The SPARC S7‑2 is a 1U rack‑mount server designed for space‑constrained data‑center scale‑out deployments. It supports single‑socket or dual‑socket configuration with SPARC S7 processors running at 4.27 GHz. Each SPARC S7 chip contains 8 cores and up to 64 hardware threads, delivering excellent throughput for multi‑threaded business applications and mid‑tier Oracle database instancesOracle.

It inherits the proven Software‑in‑Silicon feature‑set from the M7 platform. Silicon Secured Memory provides hardware‑level memory protection to mitigate buffer‑overflow and memory‑corruption exploits. Integrated on‑core cryptographic accelerators offload TLS, SSL and database encryption. The built‑in DAX (Data Analytics Accelerator) engines accelerate in‑memory query and decompression operations for analytical workloads without consuming general‑purpose CPU resources.

Hardware specifications:

• Form factor: 1‑U rack‑mount chassis

• Processors: 1 or 2 × SPARC S7 @4.27 GHz (8‑core, 64‑threads per socket)

• Memory: DDR4 DIMMs, maximum 1 TB total system memory

• Storage: Eight front‑accessible 2.5‑inch SFF hot‑swap drive bays; support SAS‑3 HDD / SSD, up to four NVMe SSD

• Expansion: Three low‑profile PCI‑E Gen3 slots

• Network: Four onboard 10GBase‑T RJ45 10‑Gigabit Ethernet ports

• Management: Oracle ILOM remote lights‑out administration

• Redundancy: Hot‑swap redundant AC power supplies and hot‑pluggable fan modules (N+1 fan)

• Supported OS: Oracle Solaris 11, Oracle VM Server for SPARC (Logical Domains virtualization)Oracle

Target use‑cases include mid‑tier databases, Java application servers, consolidated department‑level workloads and scale‑out private cloud. Compared with the higher‑core‑count T7‑1 / T7‑2 servers, the S7‑2 is a more compact, power‑efficient scale‑out SPARC platform.

Key specification bullet points

• Chassis: 1U Rack‑mount Server

• CPU: 1‑socket or 2‑socket SPARC S7 @4.27 GHz (8‑Cores /64‑Threads per processor)

• Technology: Software‑in‑Silicon, Silicon Secured Memory, On‑chip crypto & DAX analytics acceleration

• I/O: 3 × PCI‑E Gen3 low‑profile slots; 4 × onboard 10GBase‑T Ethernet

• Internal Storage: 8 × 2.5” SFF hot‑swap bays (SAS‑3 + NVMe capable)

• System Management: Oracle ILOM

• OS Support: Oracle Solaris 11, Oracle VM for SPARC

• Redundant hot‑swap PSU & N+1 cooling for enterprise reliability
