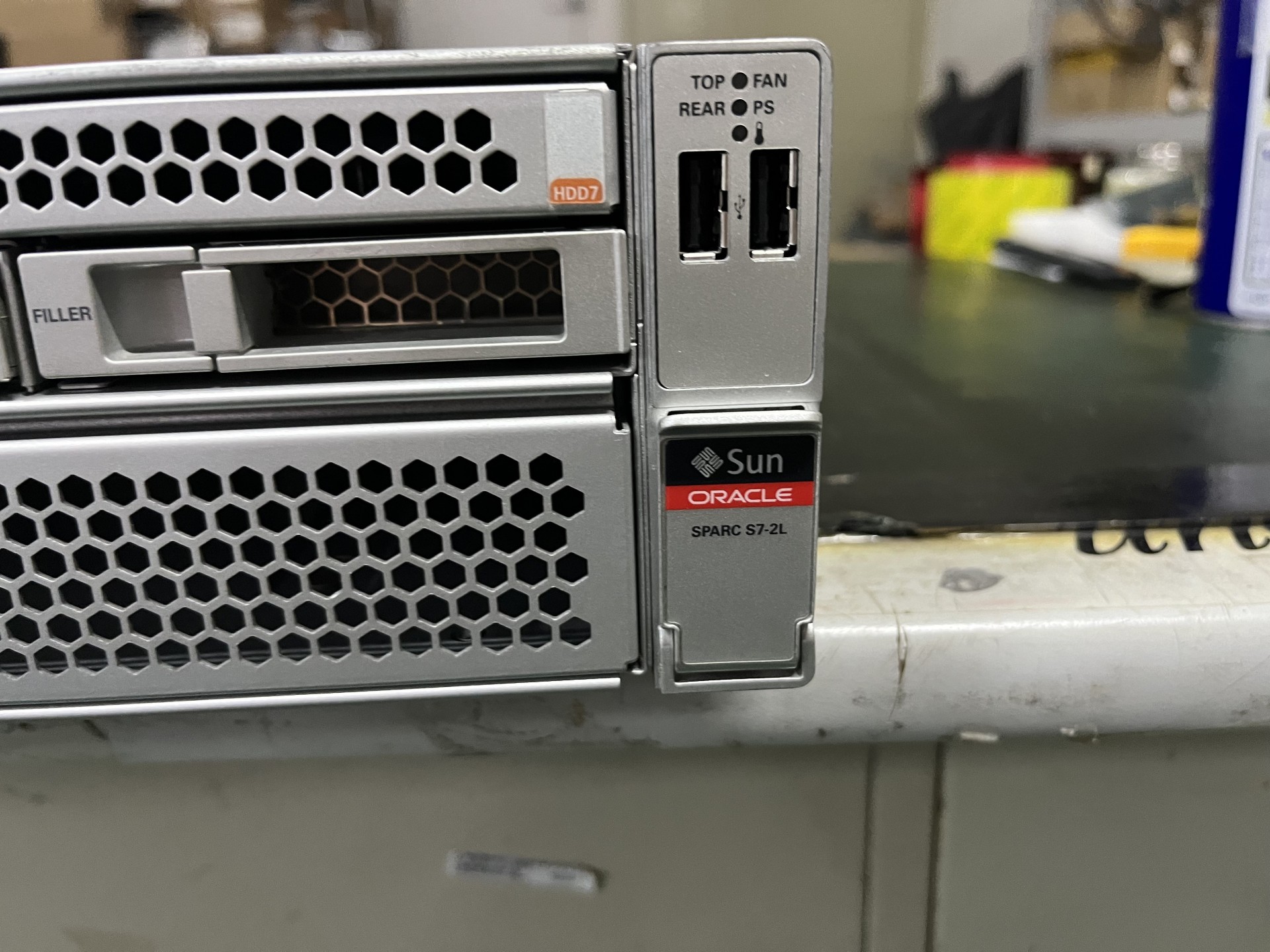

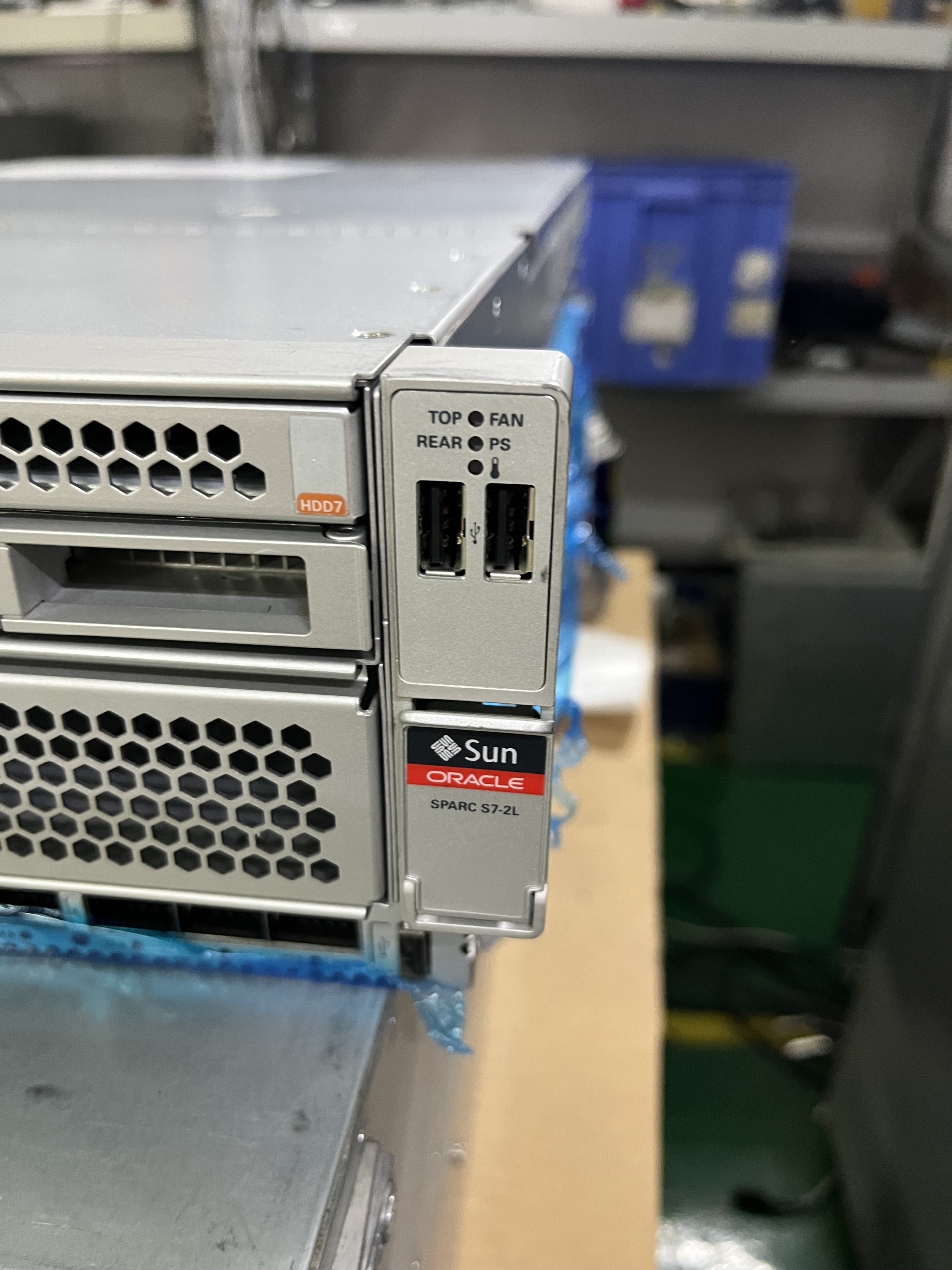

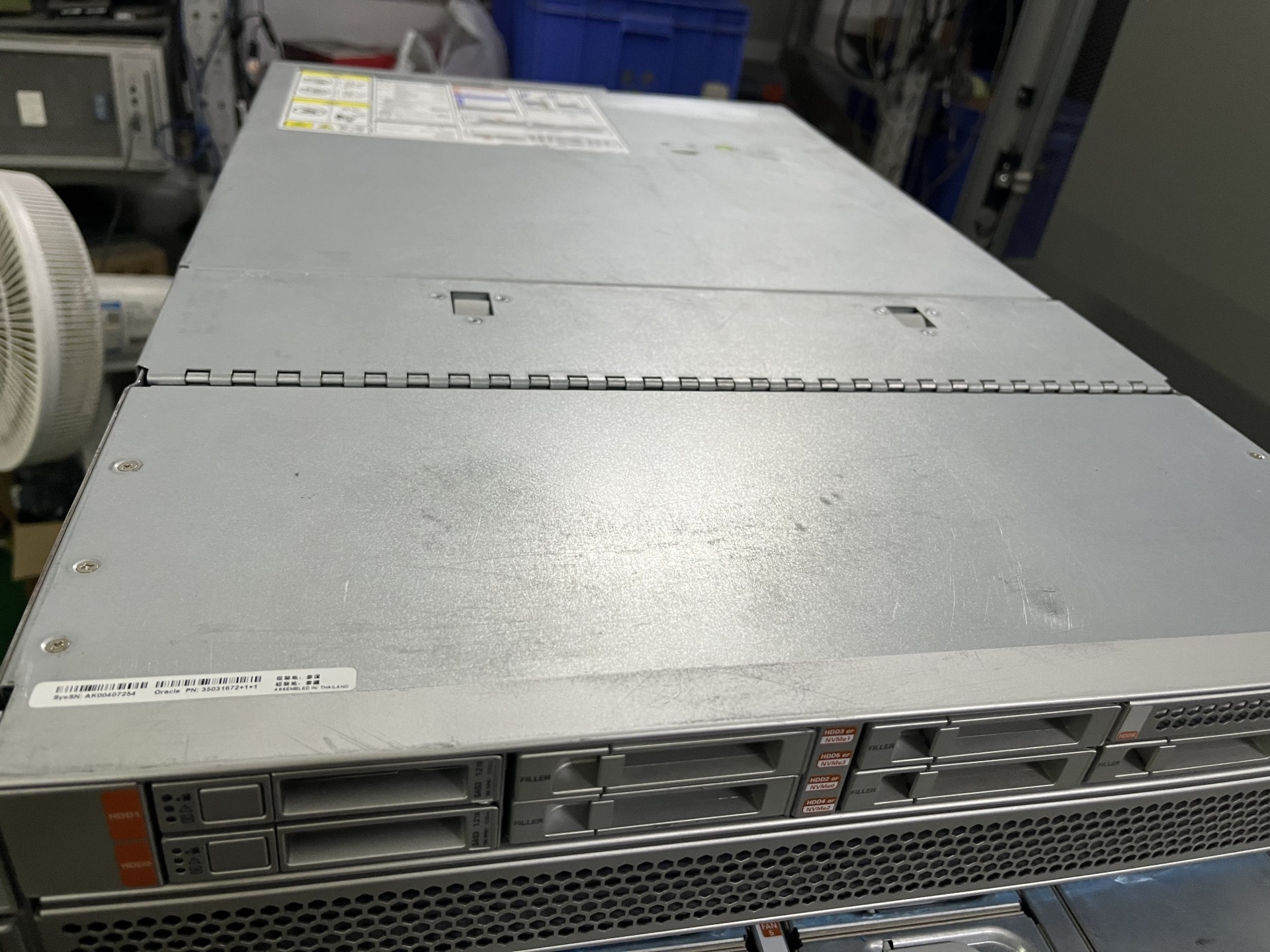

Oracle SPARC S7‑2L Server

The SPARC S7‑2L is a 2U rack‑mount two‑socket enterprise server in the SPARC S7 family. Unlike the S7‑2 which supports either single‑socket or dual‑socket configuration, the S7‑2L is strictly dual‑socket only, populated with two SPARC S7 processors running at 4.27 GHz. Each SPARC S7 CPU delivers 8 cores and 64 hardware threads, for a total of 16 cores and 128 system hardware threadsOracle.

It carries forward the well‑proven Software‑in‑Silicon silicon‑assisted security and acceleration suite. Silicon Secured Memory guards against memory‑corruption and buffer‑overflow attacks at hardware level. On‑chip cryptographic accelerators offload SSL, TLS and database encryption tasks. Integrated DAX (Data Analytics Accelerator) engines speed‑up database decompression and analytical query operations without consuming general CPU cyclesOracle.

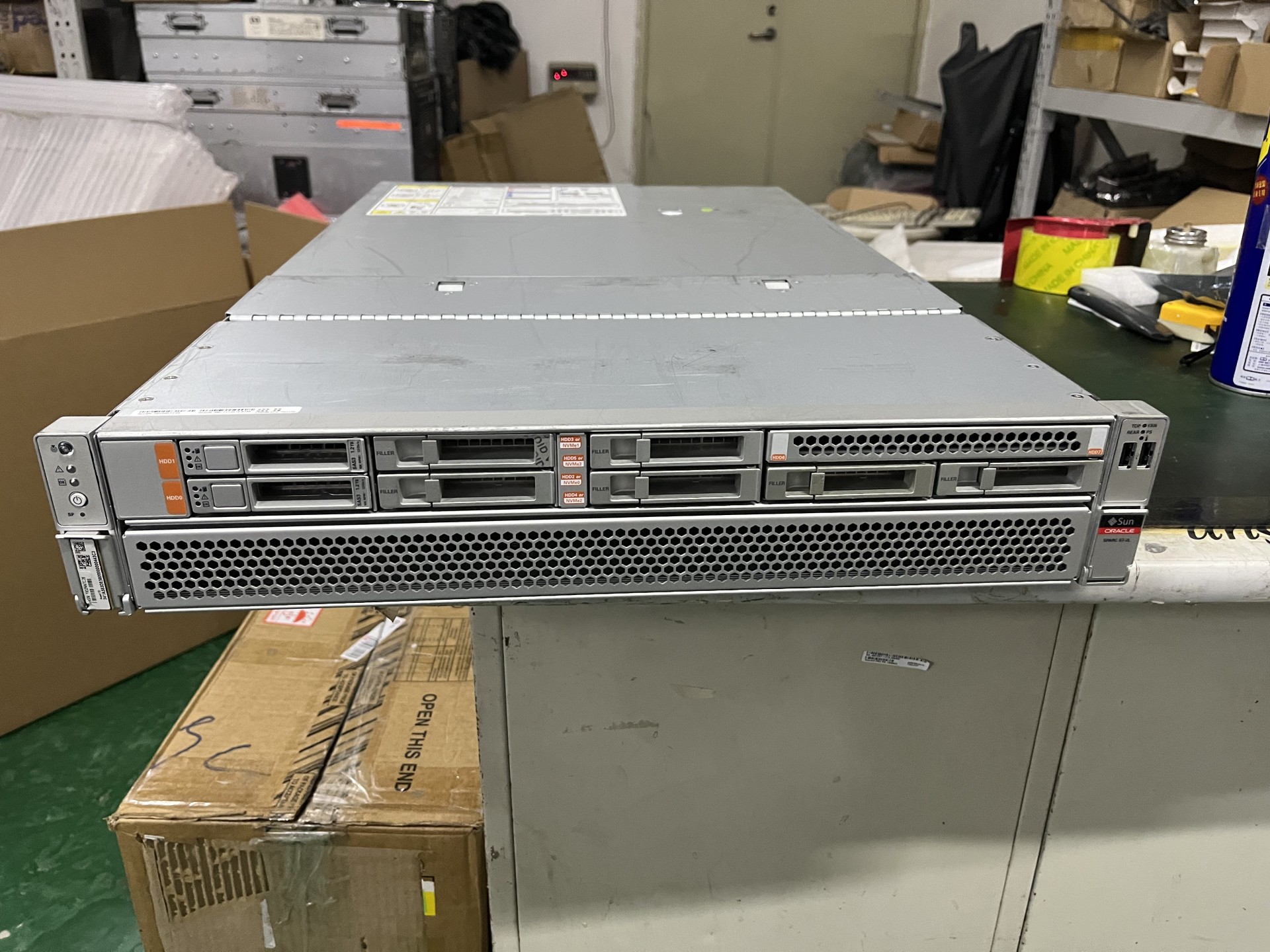

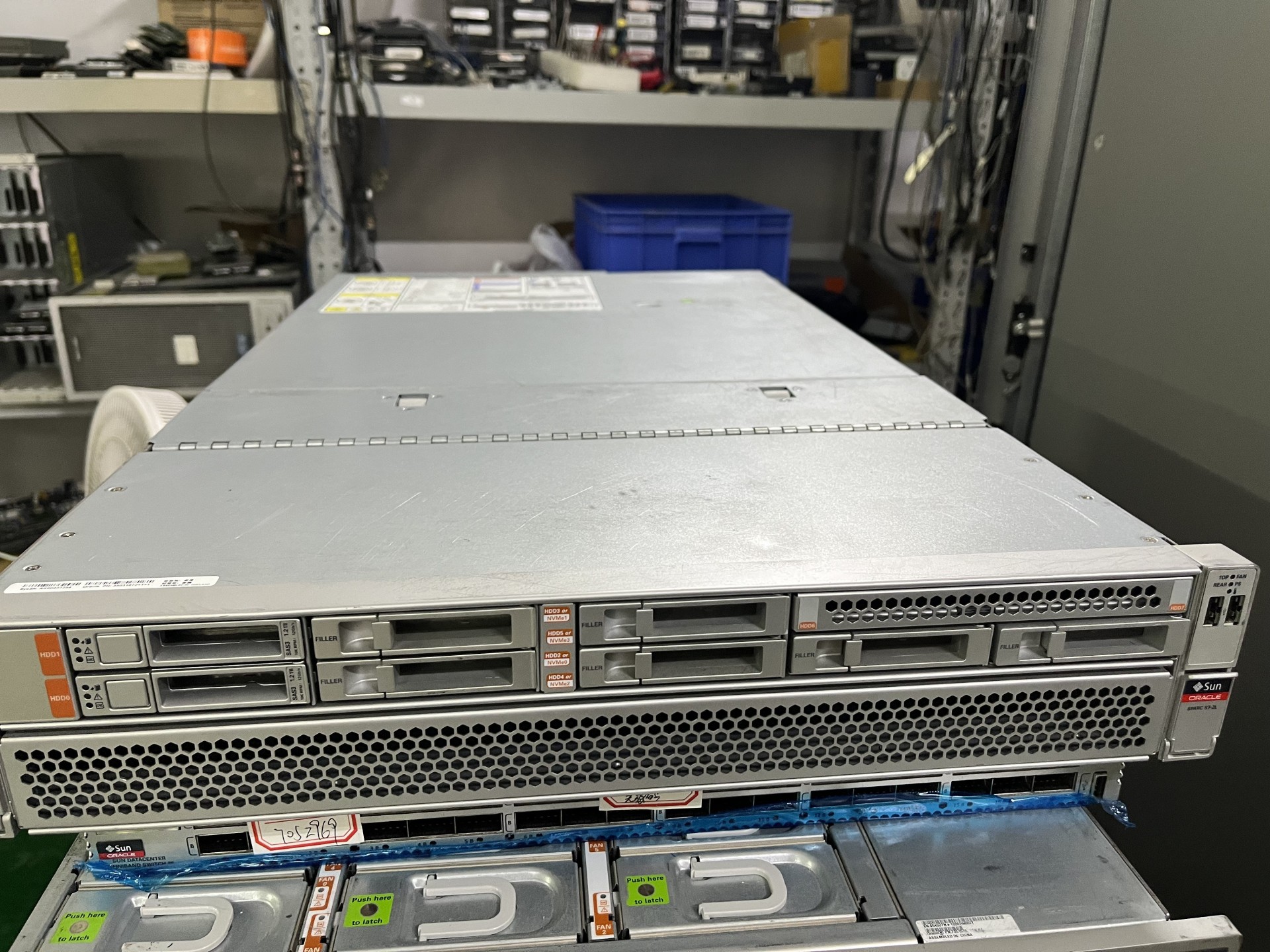

The major advantage of S7‑2L over S7‑2 lies in flexible high‑density internal storage and increased I/O expansion capacity. Four different factory drive‑cage choices are available: 8‑bay 2.5‑inch, 12‑bay 3.5‑inch, 26‑bay 2.5‑inch, or dedicated 12‑bay NVMe flash cage, making it ideal for disk‑intensive workloads.

Hardware specifications:

• Form factor: 2‑U rack‑mount chassis

• Processors: 2 × SPARC S7 @4.27 GHz (8‑core, 64‑threads per socket; fixed dual‑socket)

• Memory: DDR4‑2400 DIMMs, maximum 1 TB total system memory

• Storage: Multiple backplane options:

• 8 × 2.5‑inch SFF SAS‑3 / NVMe

• 12 × 3.5‑inch LFF SAS‑3

• 26 × 2.5‑inch SFF SAS‑3

• 12 × 2.5‑inch NVMe‑only

• Expansion: Six low‑profile PCI‑E Gen3 slots

• Network: Four onboard 10GBase‑T RJ45 10‑Gigabit Ethernet ports

• Management: Oracle ILOM remote lights‑out administration

• Redundancy: Hot‑swap redundant AC power supplies and hot‑pluggable fan modules

• Supported OS: Oracle Solaris 11, Oracle VM Server for SPARC (Logical Domains virtualization)Oracle

Typical deployment scenarios include disk‑heavy database instances, consolidated application tiers, and scale‑out cloud environments requiring plentiful local direct‑attached storage.

Key specification bullet points

• Chassis: 2U Rack‑mount Server

• CPU: Dual SPARC S7 @4.27 GHz (16‑Cores /128‑Threads, fixed two‑socket)

• Technology: Software‑in‑Silicon, Silicon Secured Memory, On‑chip crypto & DAX analytics acceleration

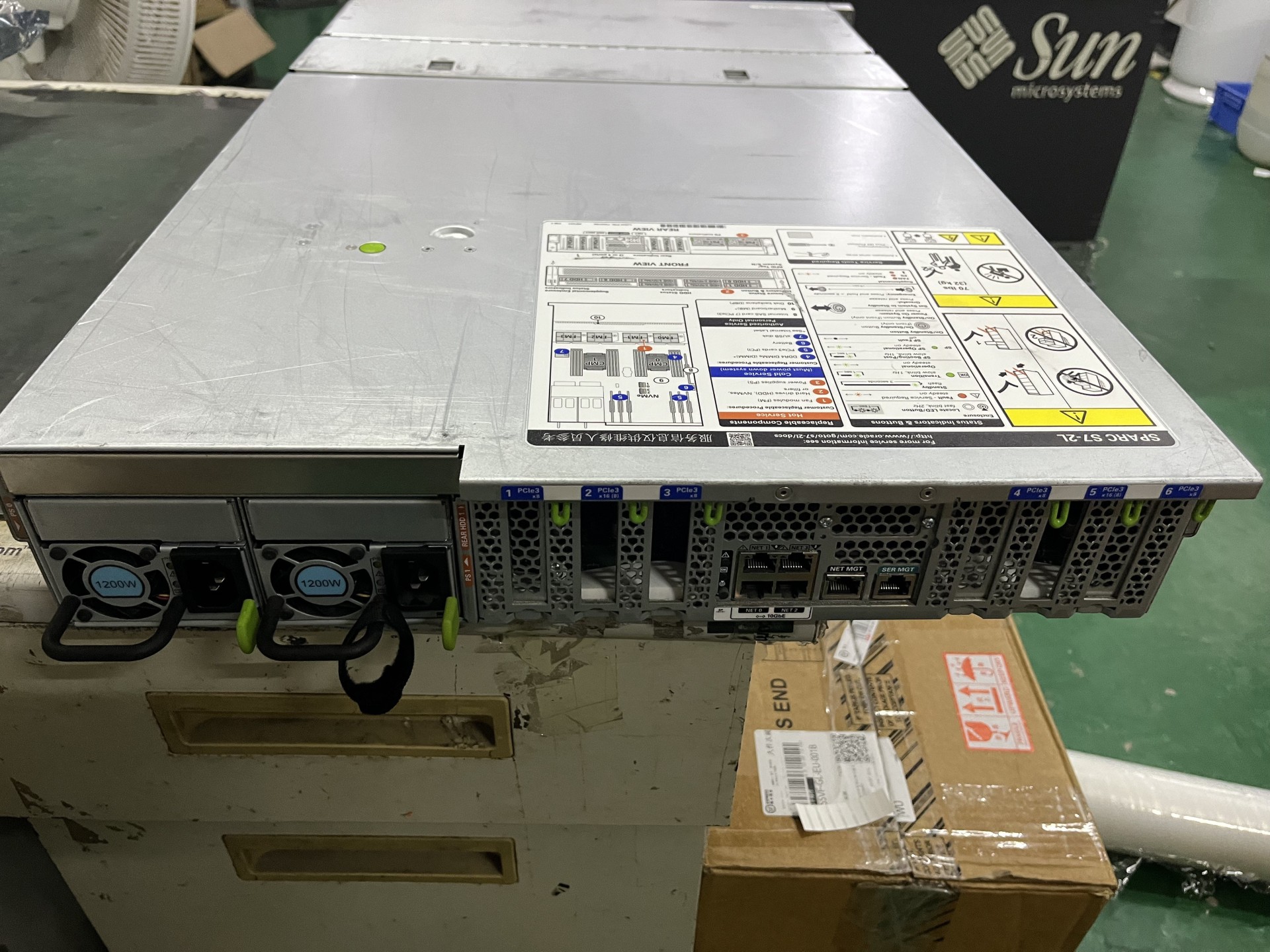

• I/O: 6 × PCI‑E Gen3 low‑profile slots; 4 × onboard 10GBase‑T Ethernet

• Internal Storage: Multi‑cage option (8 /12 /26 drive bays; SAS‑3 & NVMe capable, high storage density)

• System Management: Oracle ILOM

• OS Support: Oracle Solaris 11, Oracle VM for SPARC

• Redundant hot‑swap PSU & cooling for enterprise reliability
