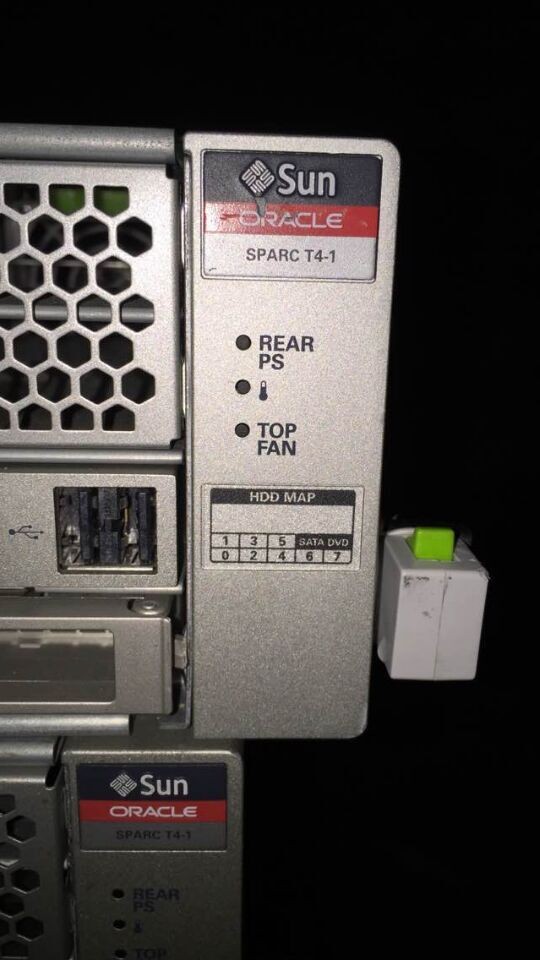

Oracle SPARC T4‑1 Server

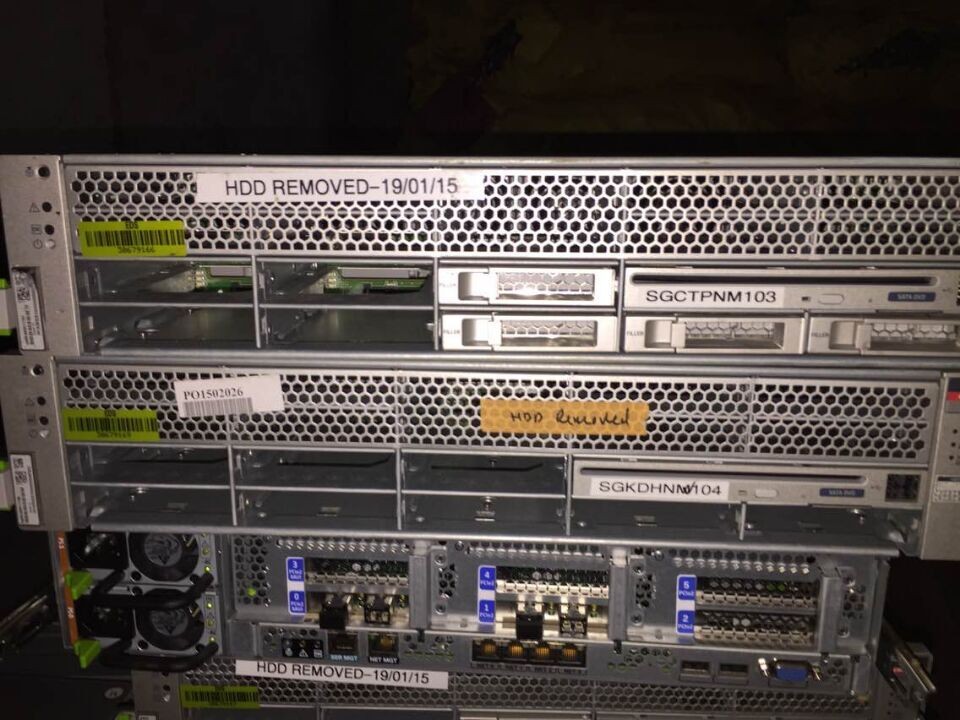

The SPARC T4‑1 is an entry‑level 2U rack‑mount enterprise server originally designed by Sun Microsystems and later marketed by Oracle. Featuring a single‑socket architecture, the system is powered by one SPARC T4 multi‑core processor operating at 2.85 GHz. Each CPU contains 8 cores with 8 hardware threads per core, delivering up to 64 hardware threads for high multi‑threaded throughput together with improved single‑thread performance compared to the prior‑generation T3 platform.

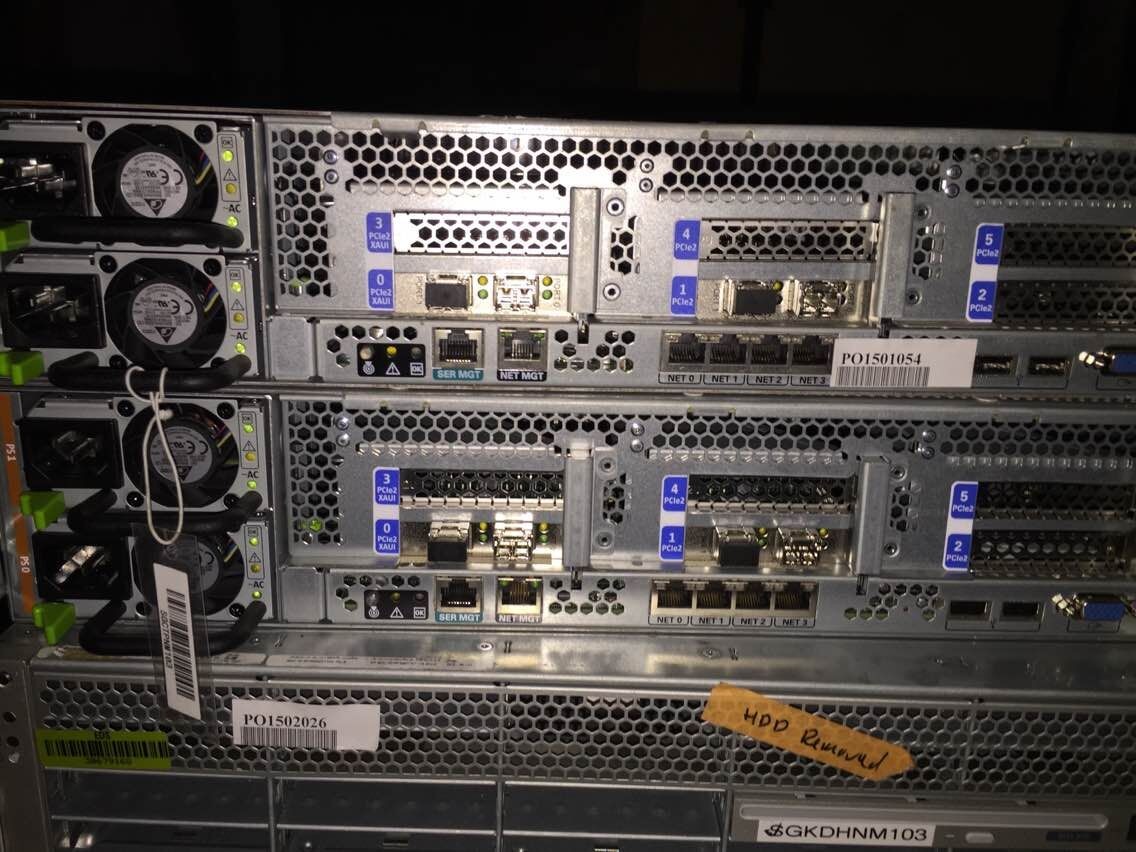

The server has 16 DDR3 DIMM slots with maximum memory capacity of 256 GB. It provides six PCI‑Express Gen‑2 expansion slots for additional network and storage adapters, and up to eight 2.5‑inch hot‑swap drive bays for HDD or SSD internal storage. The SPARC T4 processor integrates on‑chip crypto engines to perform hardware‑based encryption and decryption without consuming general‑purpose CPU resources, strengthening data security for enterprise servicesOracle.

This server fully supports Oracle Solaris 10 and Solaris 11, retaining binary compatibility with legacy SPARC‑based applications. Zero‑cost virtualization features including Oracle VM Server for SPARC and Solaris Zones allow users to consolidate multiple department workloads onto one physical machine, raising hardware utilization and cutting IT operating expenses. As the smallest member of the T4 family (T4‑1, T4‑2, T4‑4), the SPARC T4‑1 is typically deployed for web infrastructure, middleware applications, small Oracle database instances and virtualized department‑level mission‑critical workloads.

Key technical terms

‑ 2U rack‑mount server：

 ‑ single‑socket SPARC T4 processor：

 ‑ on‑chip cryptographic acceleration

‑ Solaris Zones：

 ‑ entry‑level enterprise server：
