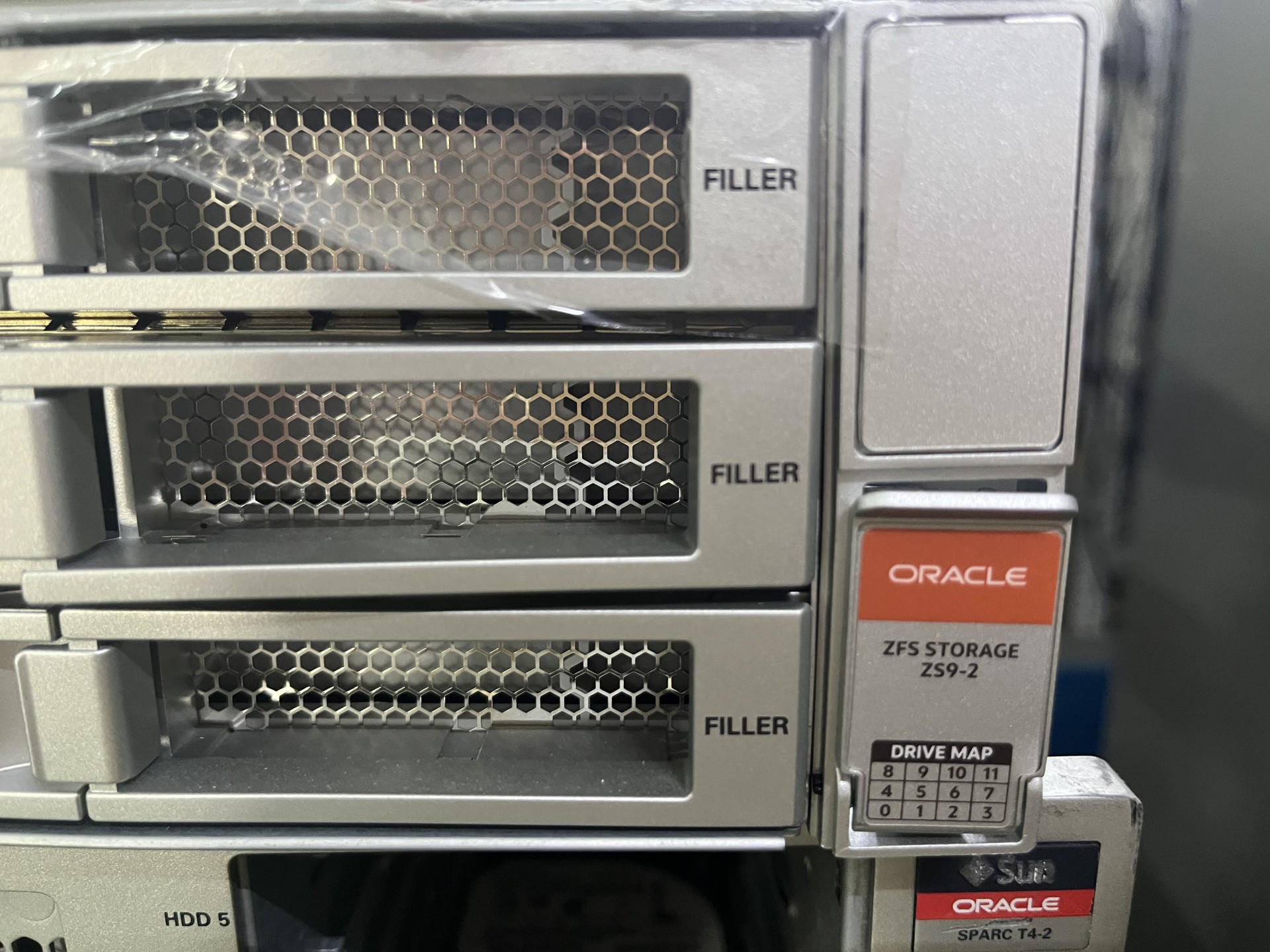

Oracle ZFS Storage ZS9‑2

Oracle ZFS Storage ZS9‑2 delivers the high‑availability shared storage foundation for the earlier‑generation Oracle Private Cloud Appliance X9‑2 and X10 engineered on‑premises private‑cloud systems. The subsystem consists of two 2‑rack‑unit ZS9‑2 storage controllers forming an active‑active HA cluster to eliminate single‑point‑of‑failure. It connects to one or multiple DE3‑24 disk expansion enclosures to scale total storage capacity. Leveraging the proven Oracle Hybrid Storage Pool technology, ZS9‑2 dynamically tiers DRAM memory, flash cache devices and backend HDD/SSD media, optimising I/O performance for virtual‑machine workloads hosted on PCA X10 compute nodes. Inside the PCA‑X10 rack environment, ZS9‑2 integrates into the internal 100Gb RoCE data fabric, supplying high‑performance shared block volumes for tenant virtual machines. It provides native enterprise storage features including thin‑provisioning, VM disk snapshots, clones and data replication. Storage capacity can be horizontally extended by deploying extra DE3‑24 disk shelves within the PCA rack. Firmware interoperability must be strictly aligned with PCA software release 3.0.1 or older releases. Important hardware restriction: ZS9‑2 is certified only for X9‑2 / X10 PCA racks. It cannot be deployed within PCA‑X11 racks, which mandate the newer ZS11‑2 storage subsystem.

Key Spec Bullet‑Point

• Model: Oracle ZFS Storage ZS9‑2 (PCA‑X9‑2 / X10 dedicated storage subsystem)

• Controller Quantity: Dual 2U controllers, active‑active HA cluster

• Expansion Shelf: DE3‑24 disk drive enclosures for capacity scaling

• Core Technology: Oracle Hybrid Storage Pool (DRAM + Flash Cache + persistent disk)

• Rack Fabric Connectivity: 100Gb RoCE internal rack network

• Primary Workload: Shared block storage for PCA X9‑2 / X10 tenant VM volumes

• Native Storage Services: Thin‑provisioning, snapshot, VM disk cloning, replication

• Software Requirement: Aligned with PCA software release ≤3.0.1

• Restriction: Cannot be deployed in PCA‑X11 rack environment
