Oracle Server X9‑2L

Oracle Server X9‑2L is Oracle’s 2‑rack‑unit dual‑socket enterprise‑grade x86 server based on the 3rd‑generation Intel Xeon Scalable “Ice‑Lake” processor family. Optimized for mission‑critical database workloads, server consolidation and virtualization, it also acts as a foundational hardware building‑block for multiple Oracle engineered systems including Oracle Database Appliance and Exadata Database Machine. The system accommodates one or two Intel Xeon Scalable processors ranging from Silver up to Platinum SKUs. Thirty‑two DDR4‑3200 RDIMM memory slots allow maximum system memory capacity of 2 TB. The roomy 2U chassis supports high‑density local storage configurations, accepting up to twelve hot‑swap 2.5‑inch NVMe/SAS SSD or 3.5‑inch HDD drives, complemented by optional mirrored internal M.2‑SATA SSDs for resilient operating‑system boot. A total of ten PCIe Gen 4 expansion slots provide abundant I/O bandwidth for high‑speed network cards, storage host bus adapters and GPU accelerators. The integrated Oracle ILOM service‑processor delivers comprehensive out‑of‑band infrastructure management, supporting remote KVMS, sensor health monitoring, fault logging and remote firmware upgrades. Certified operating‑systems include Oracle Linux, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and Microsoft Windows. It can be deployed as bare‑metal database server, virtualization host, or as factory‑customized node within Oracle engineered systems. Key clarification: despite sharing the “X9‑2” naming family, the 2U Oracle Server X9‑2L is not utilised inside the Oracle Private Cloud Appliance X9‑2 rack solution. PCA‑X9‑2 exclusively uses the 1U Oracle Server X9‑2 platform for both management and compute nodes.

Key Spec Bullet‑Point

• Model: Oracle Server X9‑2L (Stand‑Alone Enterprise Server)

• Form Factor: 2U Rack‑mount

• CPU Family: Dual‑socket 3rd‑Gen Intel Xeon Scalable (Ice‑Lake‑SP; Platinum / Gold / Silver options)

• Memory: 32 × DDR4‑3200 RDIMM slots, Max 2 TB

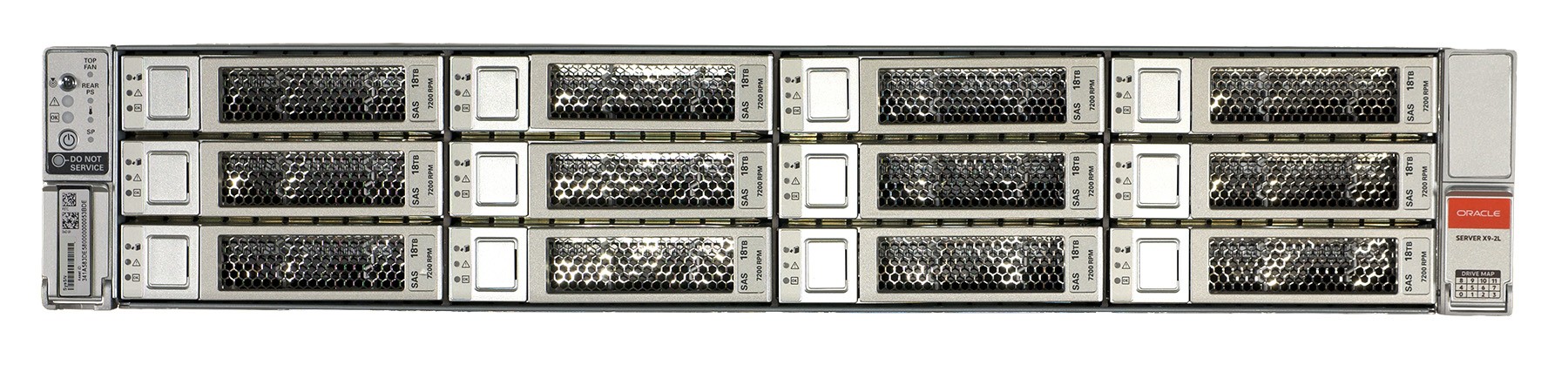

• Local Storage Bay: Up to12 × hot‑swap 2.5‑inch /3.5‑inch drives; optional internal M.2‑SATA SSD for boot

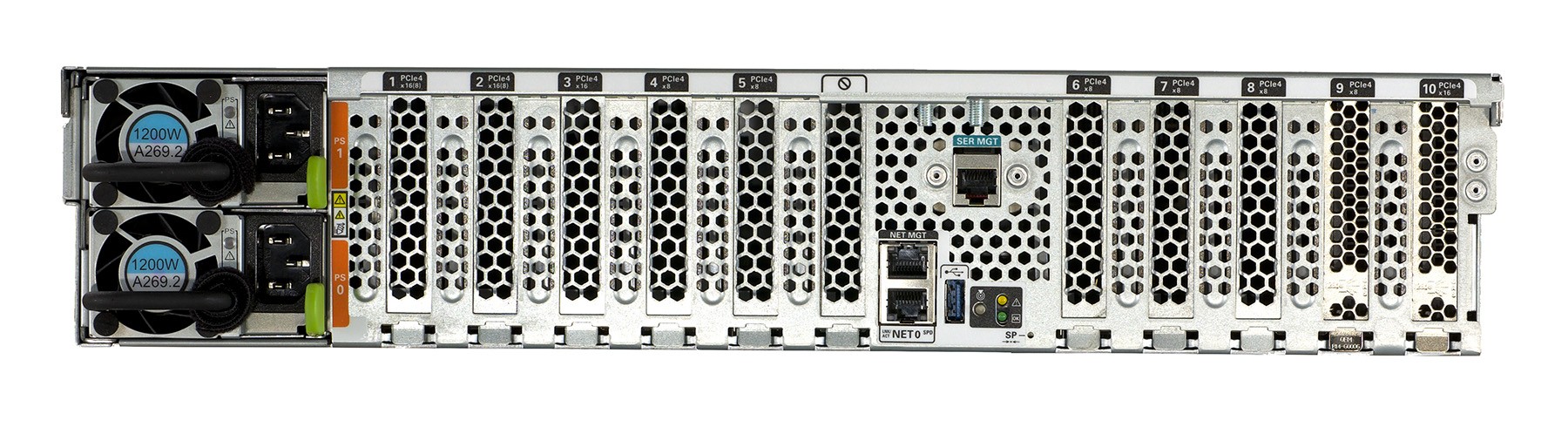

• I/O Expansion: 10 × PCIe Gen 4 slots (high I/O expandability)

• System Management: Oracle ILOM (out‑of‑band BMC)

• Supported OS: Oracle Linux, RHEL, SUSE, Microsoft Windows; bare‑metal or virtualization host

• Engineered‑system usage: ODA, Exadata Database Machine building block
