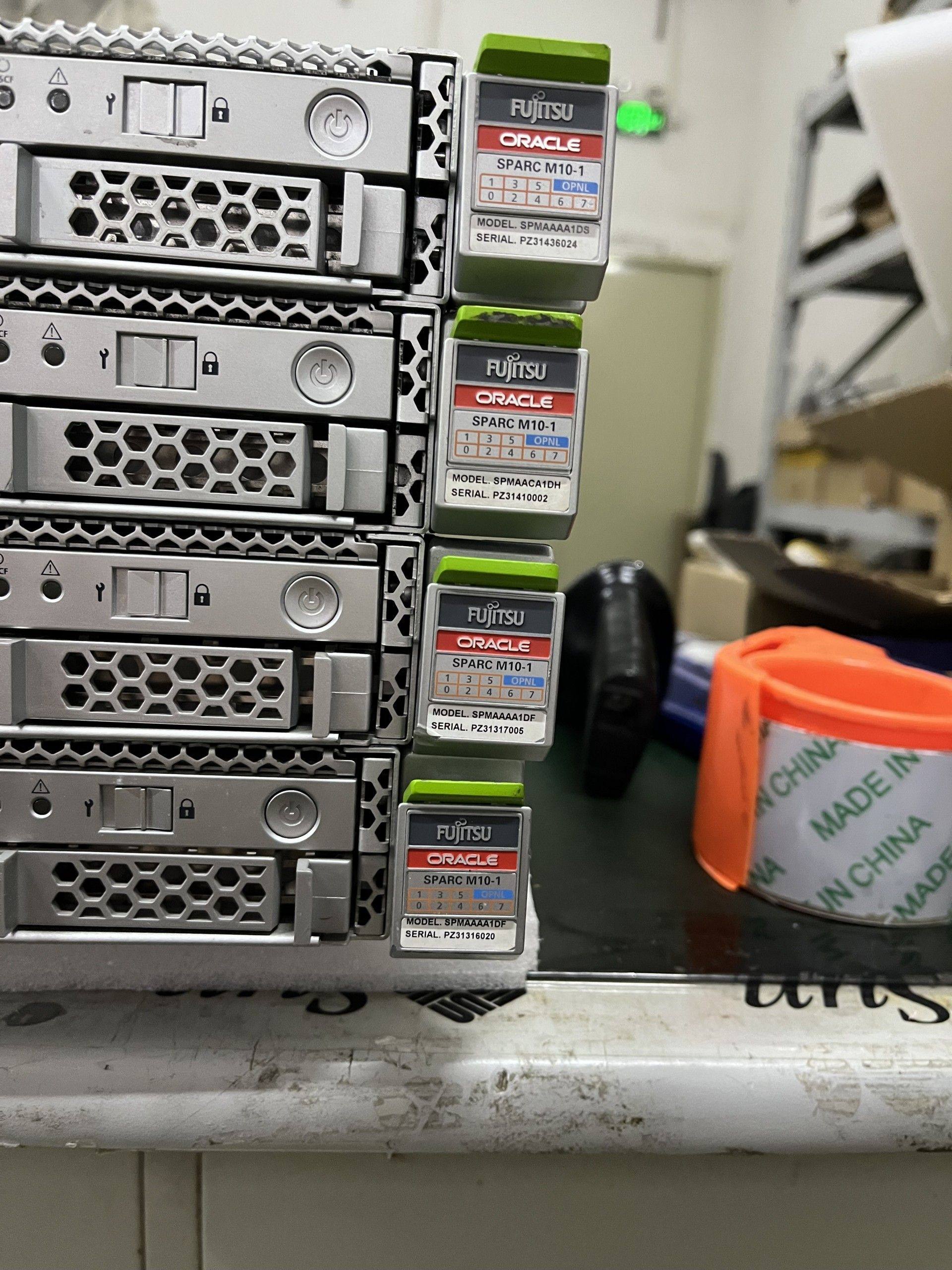

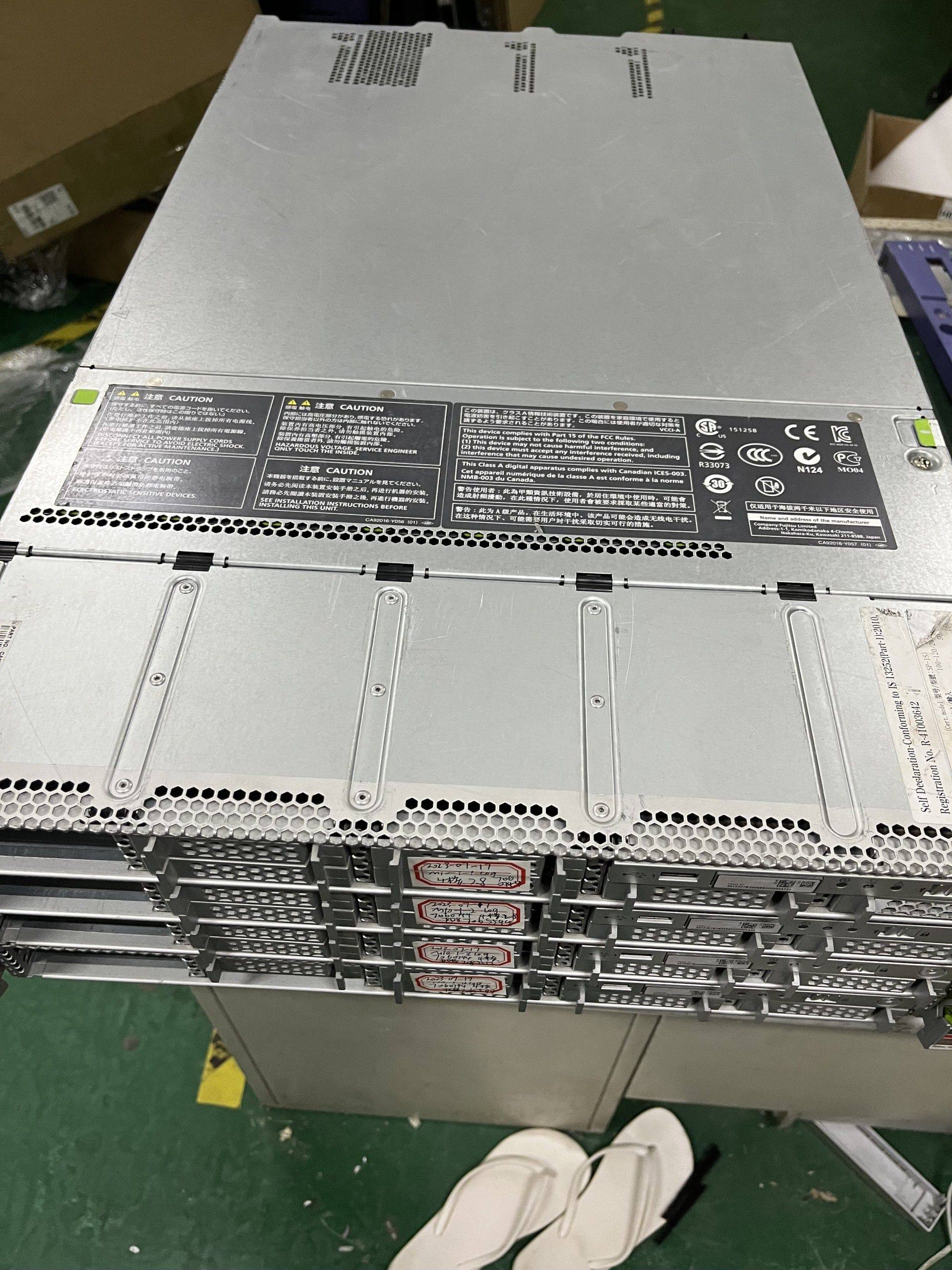

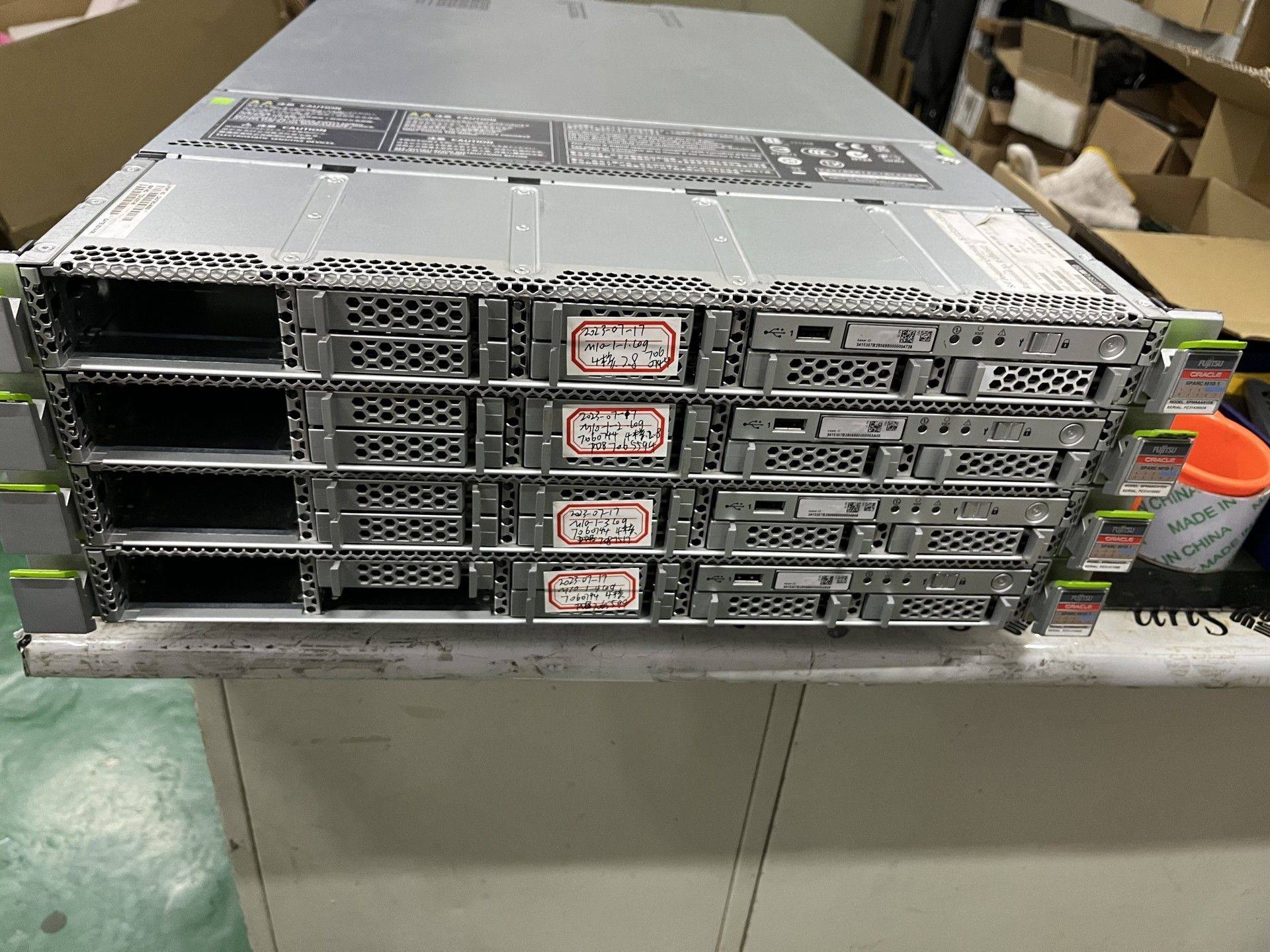

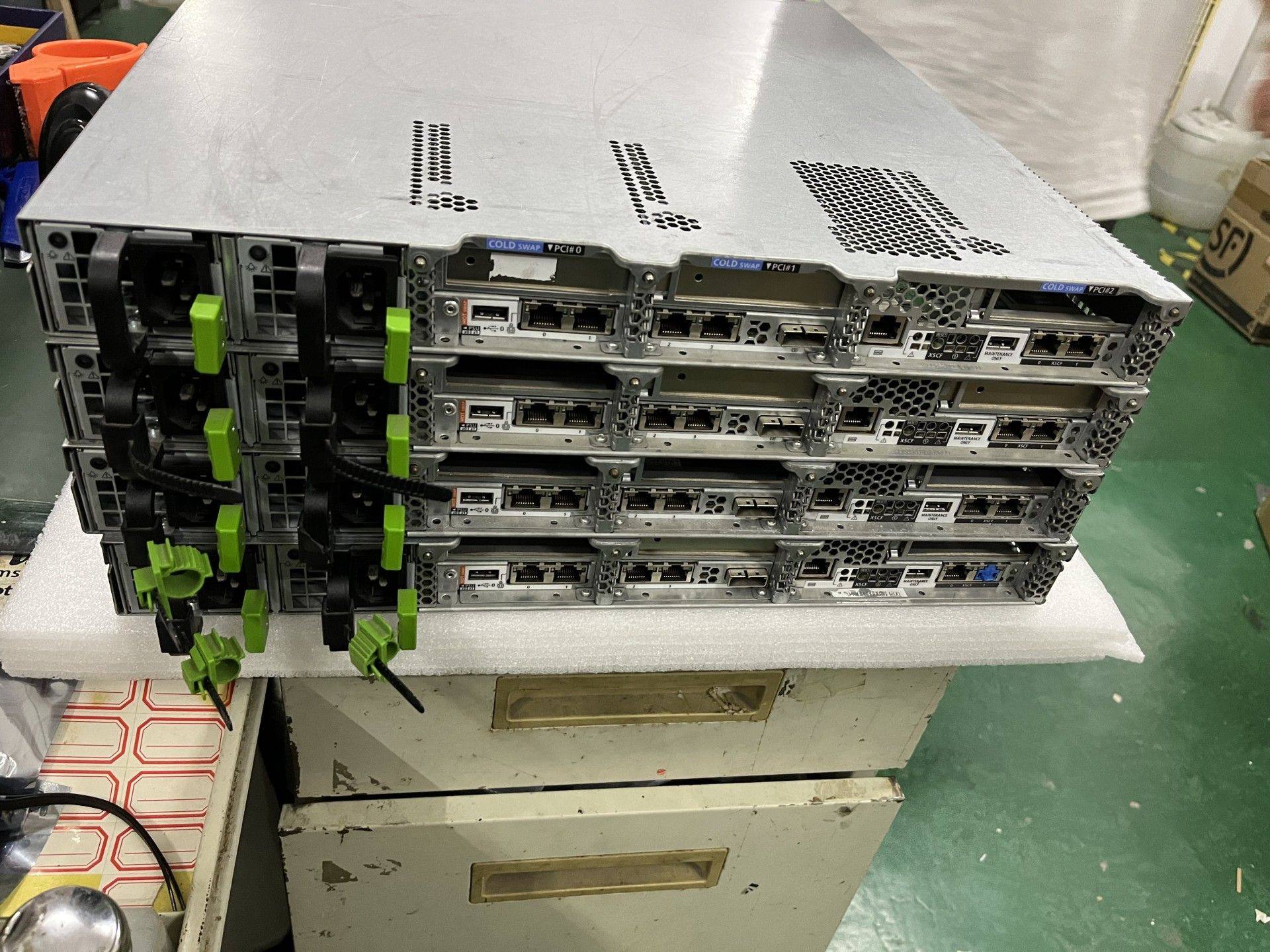

Oracle  Sun Fujitsu SPARC M10‑1 Server

Oracle Sun Fujitsu M10-1 7088702  16-Core 3.2GHz CPU 4 cores active base server

Fujitsu SPARC M10‑1 Server is a 1‑rack‑unit compact enterprise UNIX server within the SPARC M10 family, jointly engineered by Fujitsu and Oracle. It is equipped with one SPARC64 X or SPARC64 X+ processor, with a maximum of 16 physical cores. It adopts core‑level Capacity‑on‑Demand (COD) CPU Activation, allowing customers to gradually activate additional processor cores according to business growth, which helps lower initial IT investment costs. The system supports up to 512 GB DDR3 memory and PCI‑E 3.0 expansion slots. The unique Software‑on‑Chip (SWOC) silicon‑based acceleration inside the CPU speeds up Oracle database operations and crypto processing. Embedded XSCF service processor provides remote out‑of‑band hardware monitoring, firmware administration and diagnostics. It comes with free built‑in virtualization: Oracle VM Server for SPARC (LDoms) and Solaris Zones, for server consolidation. Redundant hot‑swap power supplies and fans deliver solid system fault‑tolerance. Running Oracle Solaris 10 or 11 with guaranteed binary application compatibility, the M10‑1 is widely deployed for mid‑tier OLTP databases, ERP, CRM and enterprise middleware services.

Key Specs (English)

• Form Factor: 1U Rack‑mount

• CPU: Single SPARC64 X / SPARC64 X+；max 16 cores

• Max Memory: Up to 512 GB DDR3

• Virtualization: Oracle VM Server for SPARC (LDoms), Solaris Zones；no physical PPAR hardware domains

• Management: XSCF service processor

• Expansion: PCI‑E 3.0 slots

• OS: Oracle Solaris 10 / 11

• Key Feature: Software‑on‑Chip acceleration, Core‑based Capacity‑on‑Demand CPU Activation

• Typical Workloads: Mid‑size Oracle Database, OLTP, ERP, department‑level mission‑critical applications
