Sun Netra T5440 Server

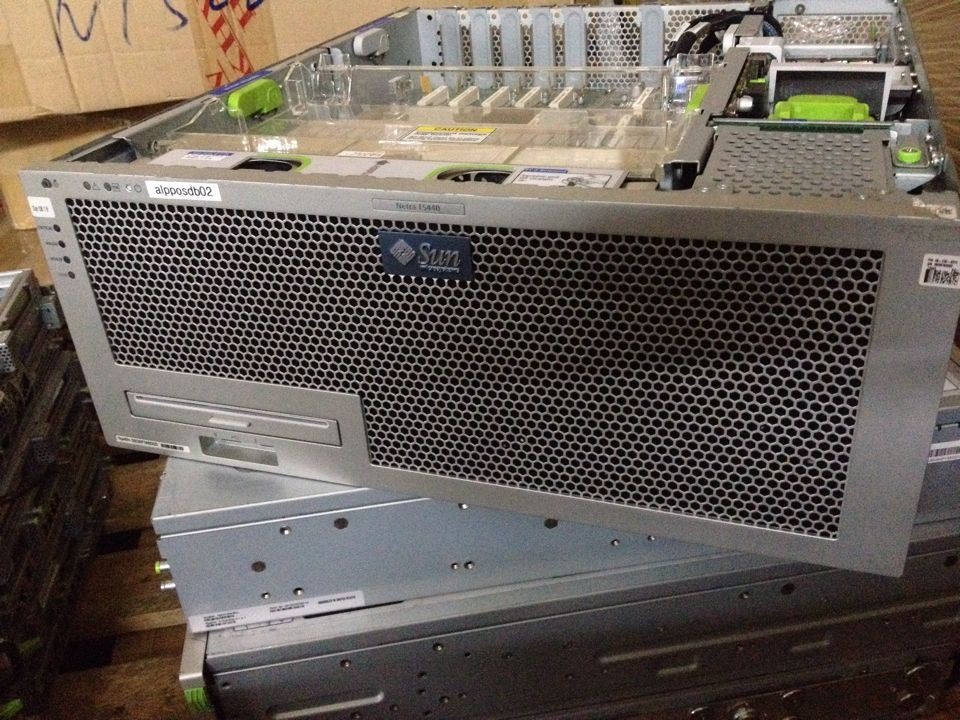

The Sun Netra T5440 is a NEBS‑Level‑3 certified carrier‑grade 4U rack‑mount server developed by Sun Microsystems and later supported under Oracle. This end‑of‑life telecommunications‑focused platform is designed for deployment inside central‑office telecom facilities, delivering high‑threading performance and robust telco‑grade reliabilityOracle.

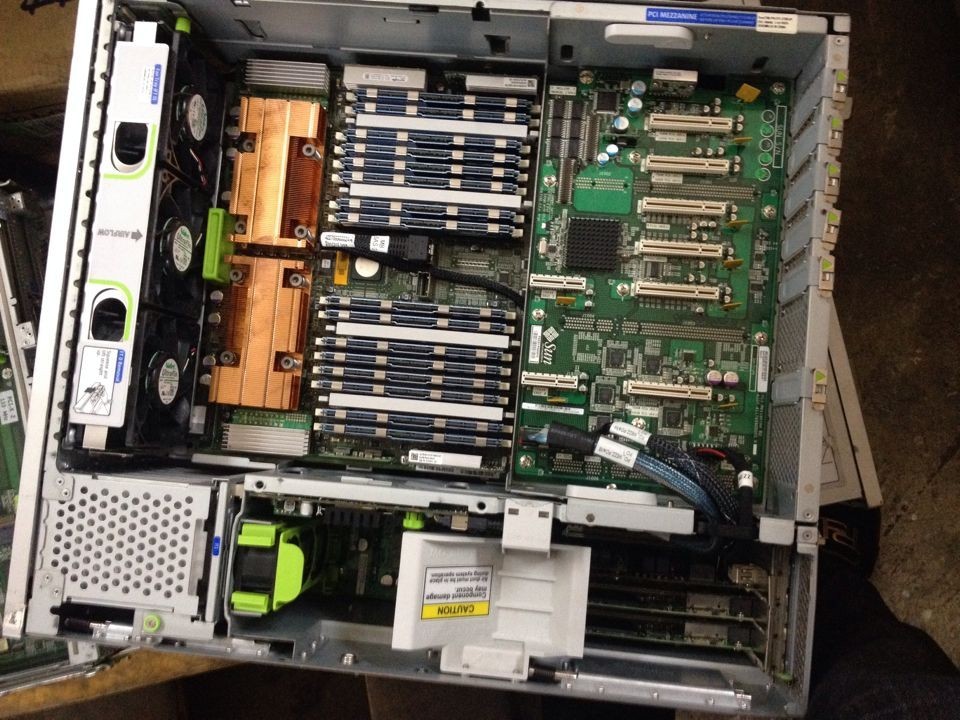

It is powered by dual UltraSPARC T2 CMT processors. Each CPU is available in 6‑core (48‑thread) or 8‑core (64‑thread) configurations, delivering a total of up to 96 or 128 hardware threads. On‑chip crypto acceleration provides strong throughput for encrypted network services. The system has 32 FB‑DIMM memory slots supporting a maximum of 256 GB RAM. Internal storage accommodates up to twelve hot‑swap 2.5‑inch SAS hard‑disk bays with integrated hardware RAID 0 / RAID 1 support, plus one slimline slot‑loading DVD‑RW optical driveOracle.

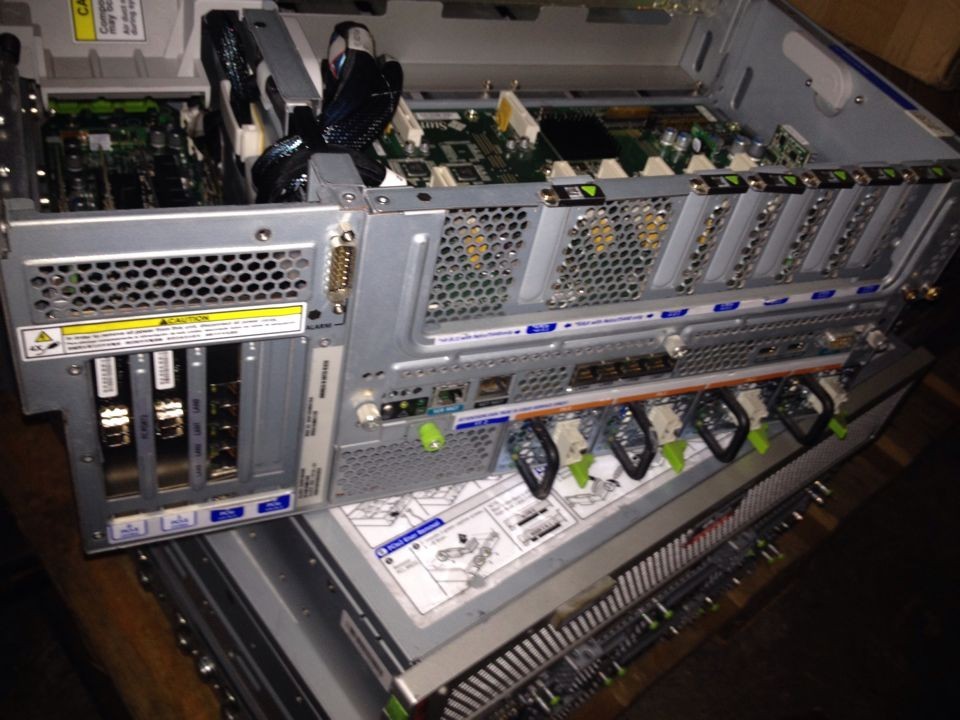

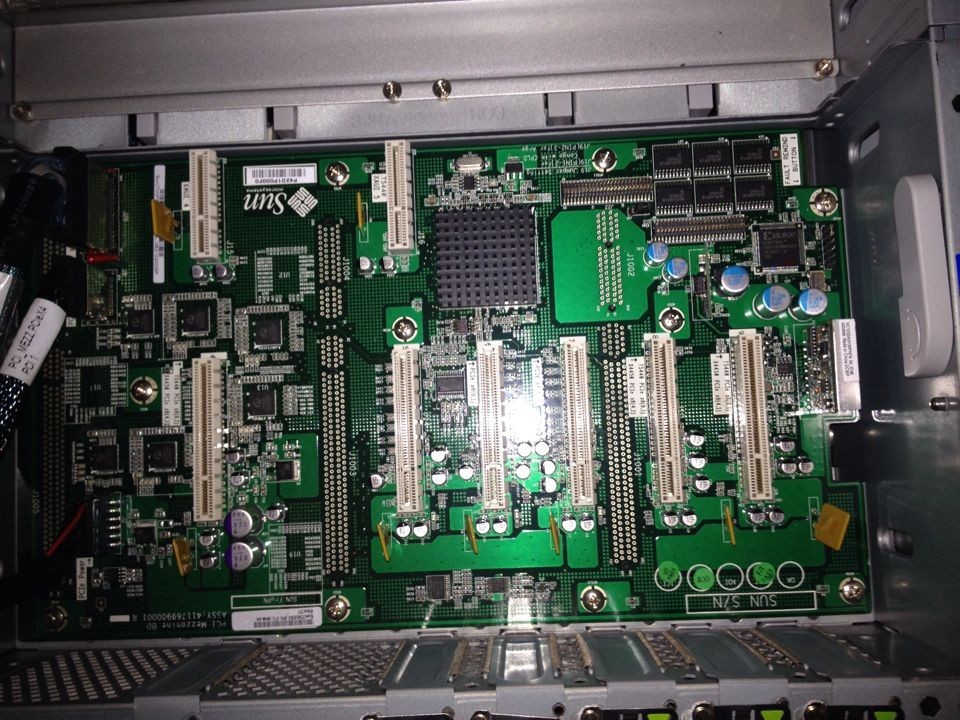

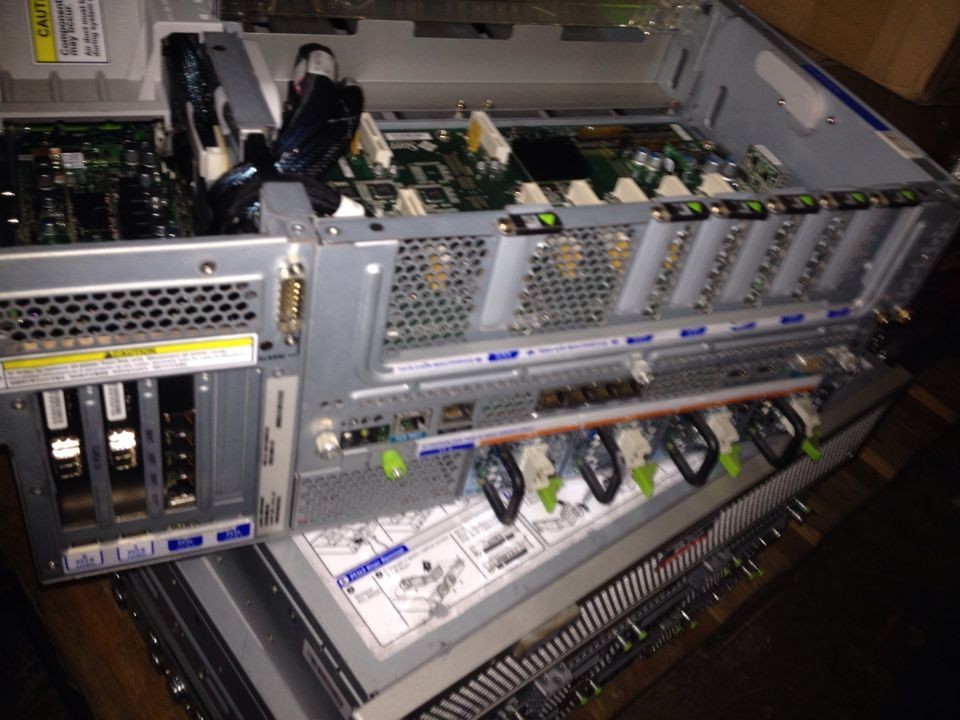

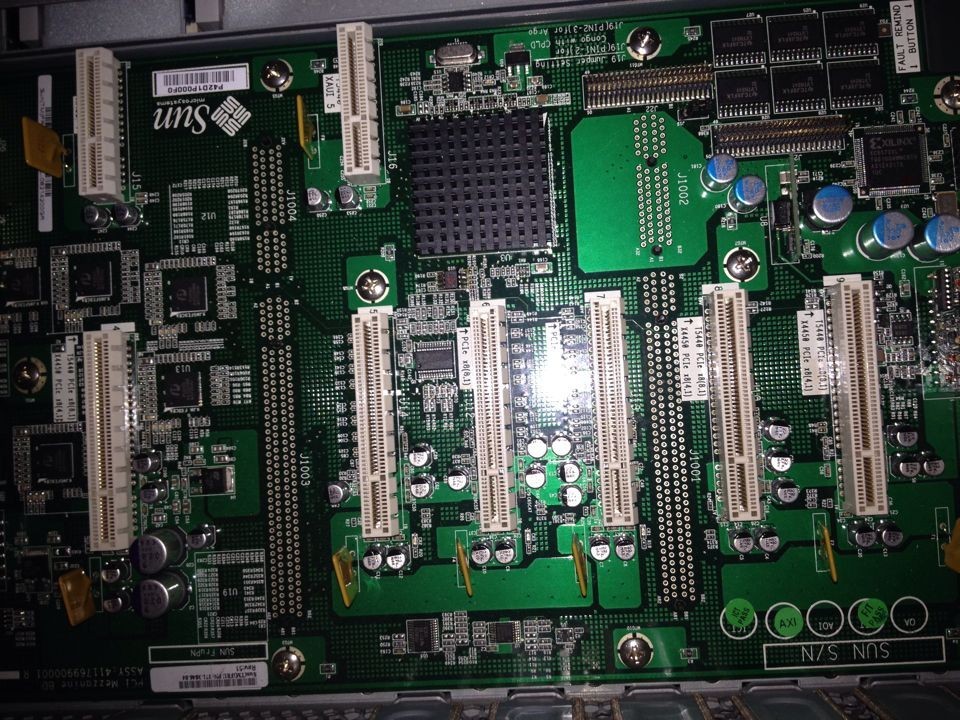

Expansion capability includes a mixture of PCI‑Express and PCI‑X slots. Network interfaces feature four onboard Gigabit Ethernet ports and a dedicated ILOM service‑processor management port for out‑of‑band remote server administration, hardware monitoring and console redirection. Four hot‑swappable 660 W power supplies offer 2N redundancy and accept both AC and ‑48 VDC telecom‑grade DC input. A dedicated telco alarm output supports data‑center alarm monitoring. Supported operating systems are Solaris 10 and Solaris 11 for SPARC. Oracle VM Server for SPARC (LDOMs) virtualization is fully supported for workload consolidation
