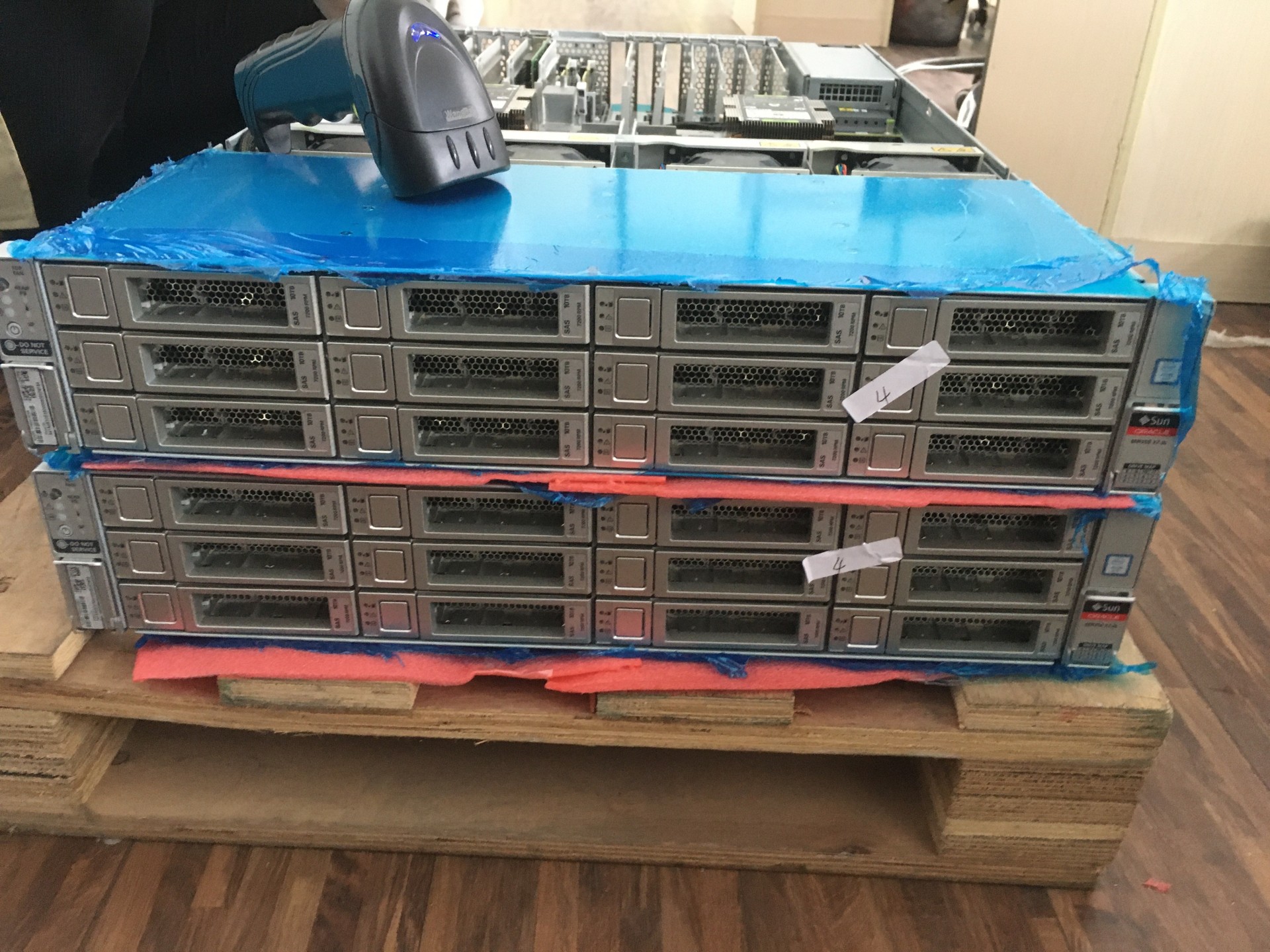

Oracle Server X7‑2L

Oracle Server X7‑2L is a 2U rack‑mounted enterprise‑class x86 server, purpose‑built for data‑intensive workloads that require substantial on‑board local storage and extensive I/O expansion, including standalone Oracle Database, non‑SAN database implementation, database consolidation and big‑data processing.

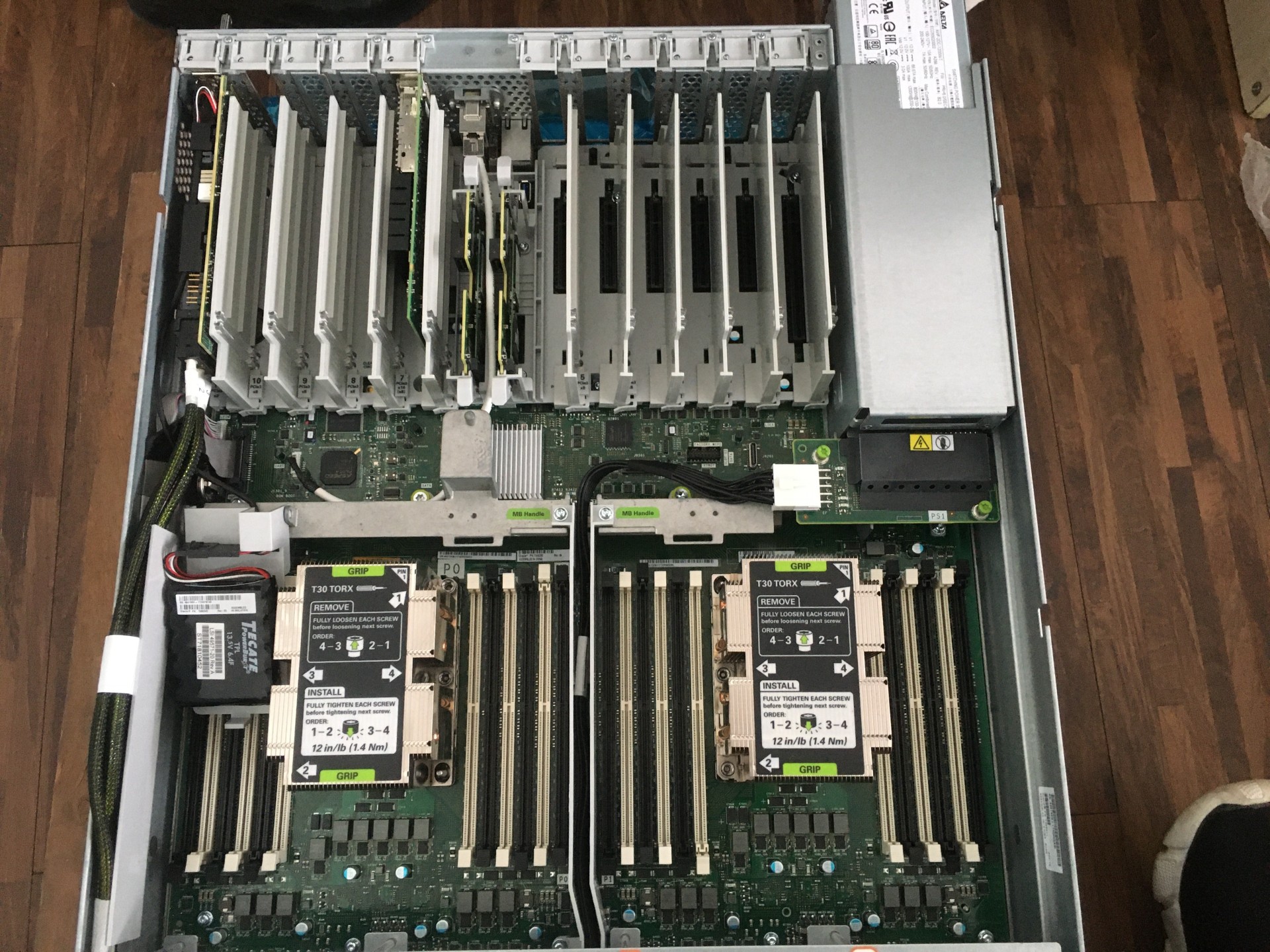

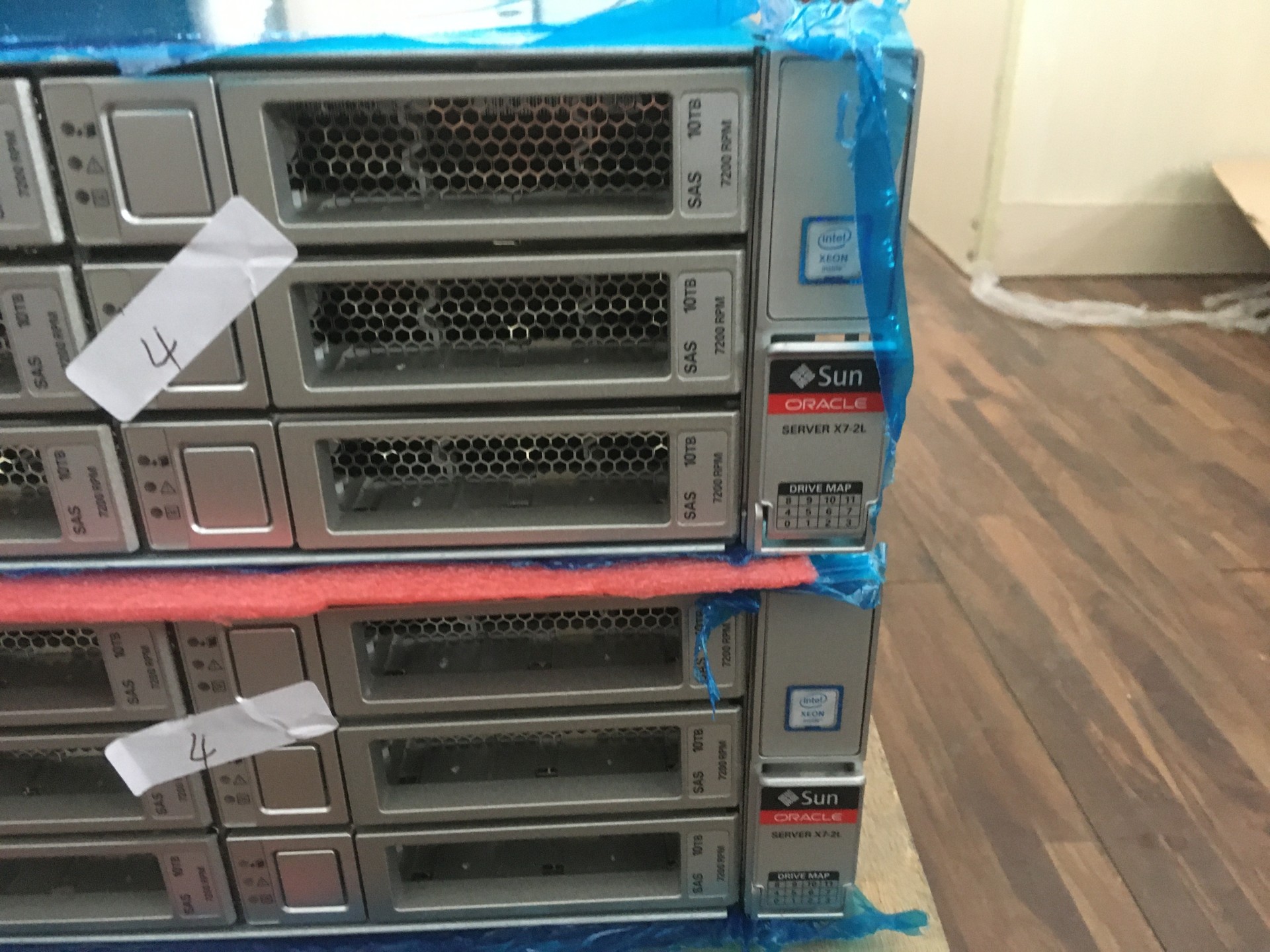

The system supports one or two 1st‑generation Intel® Xeon® Scalable Silver, Gold or Platinum processors, with up to 24 cores per socket. It provides 24 DDR4‑2666 DIMM slots supporting a maximum memory capacity of 1.5 TB. The front chassis holds twelve hot‑swap 3.5‑inch drive bays, compatible with large‑capacity SAS‑3 HDD or NVMe SSD drives (NVMe requires optional PCIe switch card). In addition, two internal M.2 flash drives are available for mirrored operating‑system boot. The dual‑processor configuration delivers eleven PCI‑Express Gen‑3 expansion slots for fibre‑channel HBAs, high‑speed network adapters and flash accelerator cards.

Redundant hot‑swappable power supplies and fan modules mitigate hardware‑caused outages. The embedded Oracle ILOM service processor provides comprehensive out‑of‑band remote infrastructure management, real‑time hardware health monitoring, fault alerting and firmware updates. Supported operating systems include Oracle Linux, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and Microsoft Windows. Oracle Server X7‑2L is a proven foundational building block for on‑premises database, middleware and big‑data environments.

Key hardware bullet points

• Form Factor: 2U Rack‑mount

• CPU: 1‑2 × 1st‑Gen Intel Xeon Scalable (Silver / Gold / Platinum), max 24 cores per socket

• Memory: 24 DDR4‑2666 DIMM slots, up to 1.5 TB

• Local Storage: Up to 12 × hot‑swap 3.5‑inch bays (SAS‑3 HDD / NVMe‑SSD); 2 × internal M.2 boot drives

• Expansion: 11 × PCIe Gen3 slots (dual‑processor configuration)

• System Management: Oracle ILOM service processor

• Redundancy: Hot‑swap redundant power supplies & fan modules

• Supported OS: Oracle Linux, RHEL, SUSE Linux, Microsoft Windows
